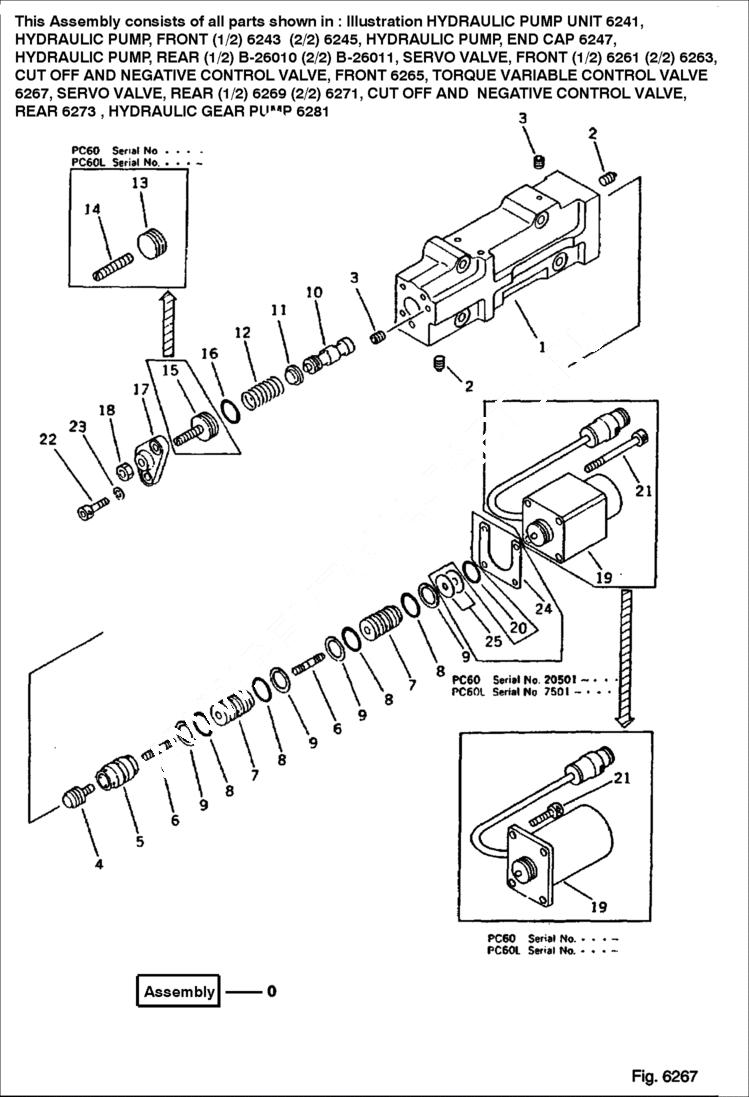

Запчасти Bobcat 130 TORQUE VARIABLE CONTROL VALVE HYDRAULIC SYSTEM

0

6651244

PUMP hydraulic assy. (HPV 35+35)

0

PUMP ASSY hydraulic (HPV 35+35) - Was 708-21-01031

0

PUMP ASSY hydraulic (HPV 35+35) - Was 708-21-01030

0

6640466

PUMP ASSY hydraulic (HPV 35+35)

0

6651245

SERVO See Illustration SERVO VALVE/ 6261 See Illustration CUT OFF AND NEGATIVE CONTROL VALVE/ 6265 See Illustration SERVO VALVE/ 6263 valve assembly - front

0

VALVE ASSY See Illustration SERVO VALVE/ 6261 See Illustration CUT OFF AND NEGATIVE CONTROL VALVE/ 6265 See Illustration SERVO VALVE/ 6263 servo - front - Was 708-21-07110

0

6640474

VALVE ASSY See Illustration SERVO VALVE/ 6261 See Illustration CUT OFF AND NEGATIVE CONTROL VALVE/ 6265 See Illustration SERVO VALVE/ 6263 servo - front

1

VALVE ASSY T.V.C. - Was 708-21-07710

1

6640480

VALVE ASSY T.V.C

1

BODY ASSY Was 708-23-07061

1

BODY ASSY Was 708-23-07060

1

BODY Was 708-21-18110

2

PLUG Was 720-68-19510

3

PLUG Was 720-25-15350

3

PLUG Was 720-68-19740

4

PISTON Was 708-23-18120

5

SLEEVE Was 708-23-18130

6

PISTON Was 708-25-18120

6

PISTON Was 708-23-18140

7

SLEEVE Was 708-23-18150

8

6642084

O-RING KT

9

6637396

RING, BACK-UP

10

SPOOL Was 708-23-18161

11

SEAT Was 708-23-18170

12

SPRING Was 708-23-18181

13

PLUG Was 708-23-15160

14

SCREW Was 708-23-15340

15

6640486

PLUG

16

6637340

O-RING

17

COVER Was 708-23-18210

18

6637107

NUT

19

6640491

SOLENOID assembly

19

6643220

ASSEMBLY solenoid

20

6637339

O-RING

21

6640492

BOLT

21

6642946

BOLT

22

6640502

BOLT

22

6637050

BOLT

23

6637133

WASHER

24

SHIM 0,50 mm - Was 708-25-18570

25

SHIM 0,50 mm - Was 708-25-18580
