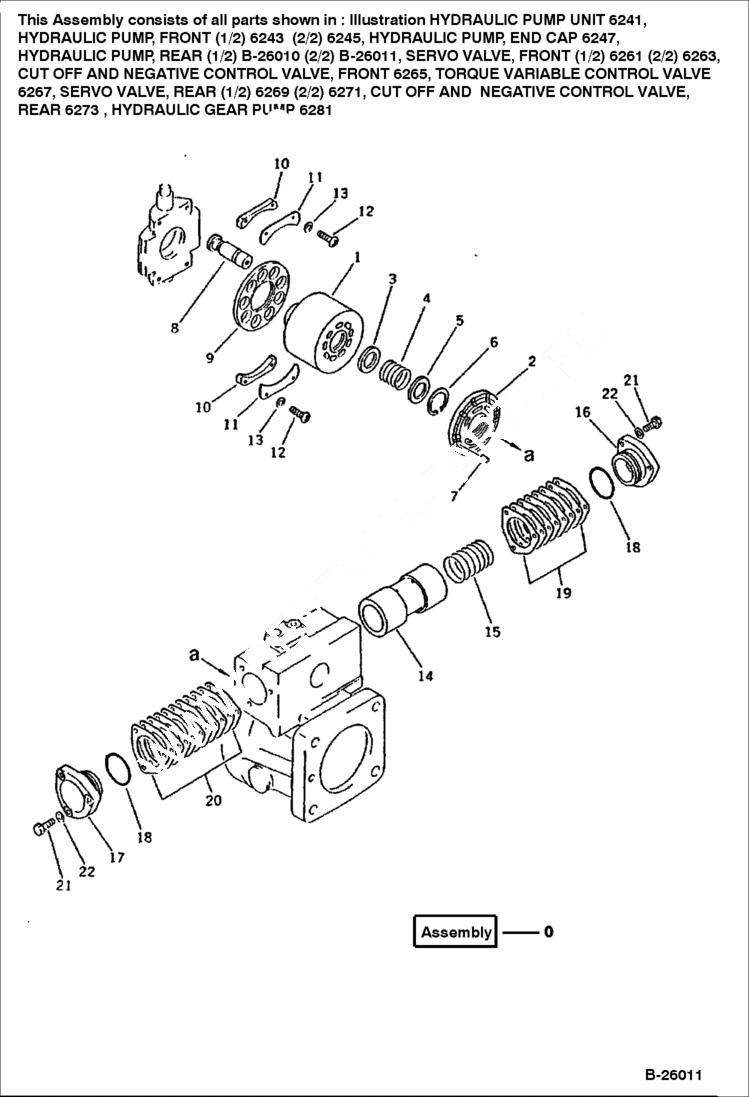

Запчасти Bobcat 130 HYDRAULIC PUMP Rear 2/2 HYDRAULIC SYSTEM

0

6651244

PUMP hydraulic assy. (HPV 35+35)

0

PUMP ASSY hydraulic (HPV 35+35) - Was 708-21-01031

0

PUMP ASSY hydraulic (HPV 35+35) - Was 708-21-01030

0

6640466

PUMP ASSY hydraulic (HPV 35+35)

0

PUMP ASSY See Illustration HYDRAULIC PUMP/ 6243 See Illustration HYDRAULIC PUMP/ B26010 See Illustration HYDRAULIC PUMP/ 6247 See Illustration HYDRAULIC PUMP/ 6245 hydraulic - sub sub - Was 708-21-012

0

6640467

PUMP ASSY See Illustration HYDRAULIC PUMP/ 6243 See Illustration HYDRAULIC PUMP/ B26010 See Illustration HYDRAULIC PUMP/ 6247 See Illustration HYDRAULIC PUMP/ 6245 hydraulic - sub sub

1

SUB ASSY cylinder block - rear - Was 708-21-00070

1

BLOCK, CYLINDER Was 708-21-13160

2

PLATE,VALVE Was 708-21-13230

3

6640470

WASHER

4

6640471

SPRING

5

6640469

WASHER

6

6640472

RING

7

PIN Was 720-68-19610

8

6646091

PISTON

9

RETAINER,SHOE Was 708-21-13340

10

6640459

SHIM

10

SPACER 8,02 mm - Was 708-21-13420

10

SPACER 8,05 mm - Was 708-21-13430

10

8,08 mm - Was 708-21-13440

11

RETAINER, BEARING Was 708-21-13450

12

SCREW Was 708-23-13460

13

6637155

WASHER

14

6646094

PISTON

15

6640473

RING spring

16

CAP Was 708-21-14230

17

CAP Was 708-21-14150

18

6637360

O-RING

19

6640460

KIT, SHIM

19

SHIM 0,10 mm - Was 708-21-14210

19

SHIM 0,10 mm - Was 708-21-14170

19

SHIM 0,20 mm - Was 708-21-14160

19

SHIM 0,50 mm - Was 708-21-14180

20

6646444

SHIM

20

SHIM 0,10 mm - Was 708-21-14210

20

SHIM 0,10 mm - Was 708-21-14170

20

SHIM 0,20 mm - Was 708-21-14160

20

SHIM 0,50 mm - Was 708-21-14180

21

6636961

BOLT

22

6637156

WASHER
