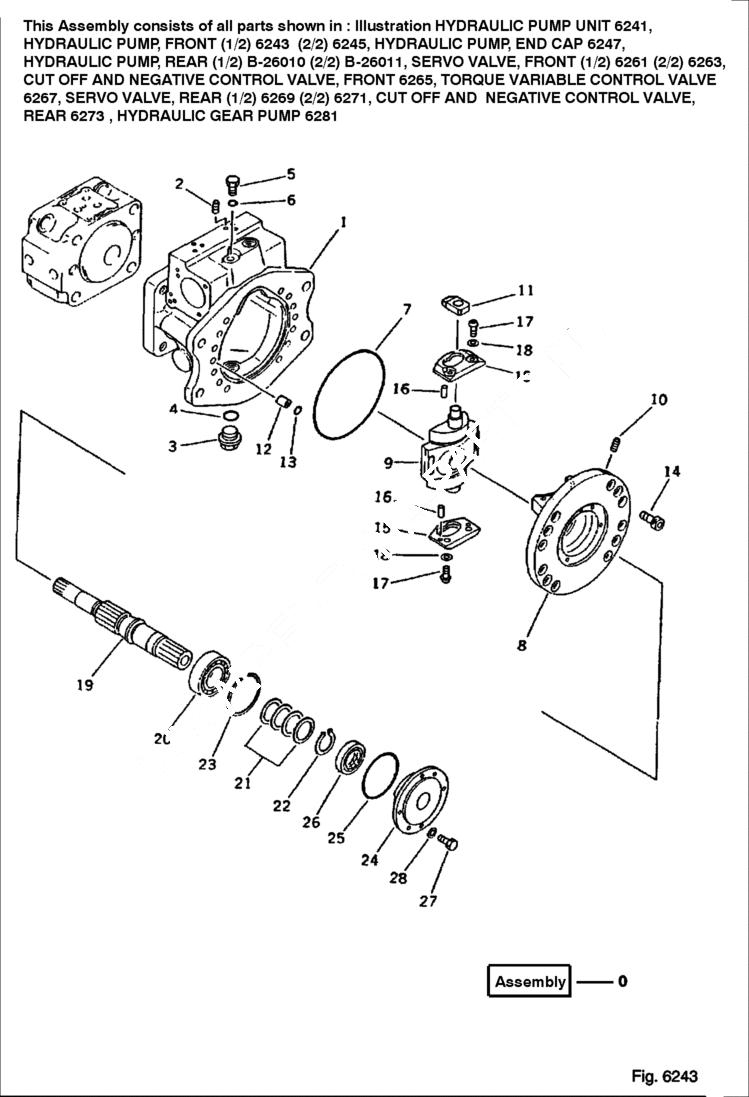

Запчасти Bobcat 130 HYDRAULIC PUMP Front 1/2 HYDRAULIC SYSTEM

0

6651244

PUMP hydraulic assy. - (HPV35 + 35)

0

PUMP ASSY hydraulic (HPV35 + 35) - Was 708-21-01031

0

PUMP ASSY hydraulic (HPV35 + 35) - Was 708-21-01030

0

6640466

PUMP ASSY hydraulic (HPV35 + 35)

0

SUB ASSY See Illustration HYDRAULIC PUMP/ 6245 See Illustration HYDRAULIC PUMP/ B26011 See Illustration HYDRAULIC PUMP/ B26010 See Illustration HYDRAULIC PUMP/ 6247 hydraulic pump - sub sub - Was 708-

0

6640467

PUMP ASSY See Illustration HYDRAULIC PUMP/ 6245 See Illustration HYDRAULIC PUMP/ B26011 See Illustration HYDRAULIC PUMP/ B26010 See Illustration HYDRAULIC PUMP/ 6247 hydraulic - sub sub

1

SUB ASSY case - front - Was 708-21-00010

1

CASE FRONT Was 708-21-12110

2

6640378

PLUG

3

6637453

PLUG

4

6637411

O-RING

5

6640602

PLUG

6

6637408

O-RING

7

O-RING Was 07000-02145

8

CRADLE SUB ASS'Y,FRONT Was 708-21-00030

8

CRADLE FRONT Was 708-21-12311

9

ROCKER, CAM Was 708-21-13410

10

6640378

PLUG

11

SLIDER Was 708-21-14220

12

JOINT Was 708-21-12330

13

6637370

O-RING

14

BOLT Was 708-21-12380

15

PLATE Was 708-21-12340

16

PIN Was 708-23-12370

17

SCREW Was 708-21-12350

18

WASHER Was 708-21-12360

19

6646078

SHAFT

20

6646082

BEARING

21

6640458

WASHER

21

WASHER 2,10 mm - Was 708-21-12790

21

WASHER 2,20 mm - Was 708-21-12810

21

WASHER 2,30 mm - Was 708-21-12820

21

WASHER 2,40 mm - Was 708-21-12830

22

6646443

SNAP RING

23

6646076

RING

24

6646084

HOUSING

25

6637343

O-RING

26

6640468

SEAL, OIL

27

6636943

BOLT

28

6637155

WASHER
