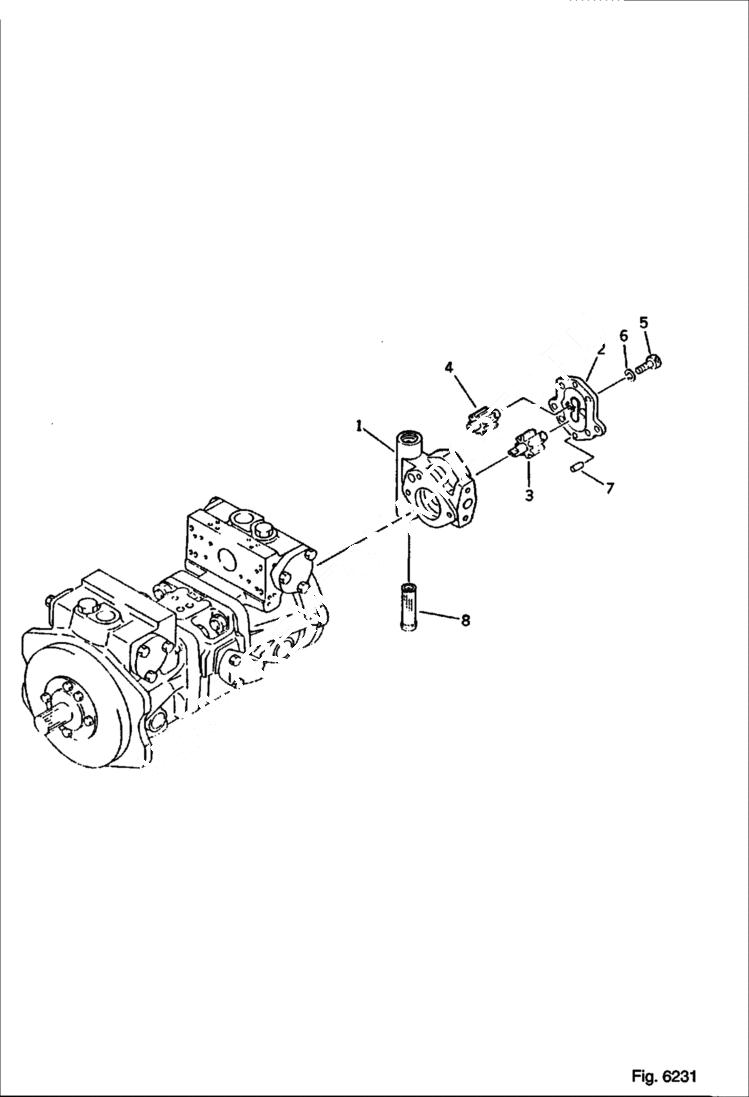

Запчасти Bobcat 130 HYDRAULIC GEAR PUMP HYDRAULIC SYSTEM

1

6646440

PUMP ASSY See Illustration HYDRAULIC PUMP UNIT/ B26002 See Illustration HYDRAULIC PUMP/ B26003 See Illustration HYDRAULIC PUMP/ B26004 See Illustration HYDRAULIC PUMP/ B26005 See Illustration RELIEF V

1

PUMP ASSY See Illustration HYDRAULIC PUMP UNIT/ B26002 See Illustration HYDRAULIC PUMP/ B26003 See Illustration HYDRAULIC PUMP/ B26004 See Illustration HYDRAULIC PUMP/ B26005 See Illustration RELIEF V

1

PUMP ASSY See Illustration HYDRAULIC PUMP UNIT/ B26002 See Illustration HYDRAULIC PUMP/ B26003 See Illustration HYDRAULIC PUMP/ B26004 See Illustration HYDRAULIC PUMP/ B26005 See Illustration RELIEF V

1

PUMP ASSY sub - Komatsu S/N 22001 & Abv. - Was 708-21-01110

1

PUMP ASSY gear (BAR 16) - Komatsu S/N 20501-22000 - Was 704-24-24401

1

6640294

PUMP ASSY gear (BAR 16) - Komatsu S/N 22001 & Abv.

1

6640297

BODY

2

6640295

HOUSING

3

6640298

GEAR drive

4

6640299

GEAR driven

5

6646652

BOLT

6

6637135

WASHER

7

6637175

PIN, DOWEL

8

6640296

FILTER strainer - Was 20501-22000

8

STRAINER Komatsu S/N 22001 & Abv. - Was 704-28-02751
