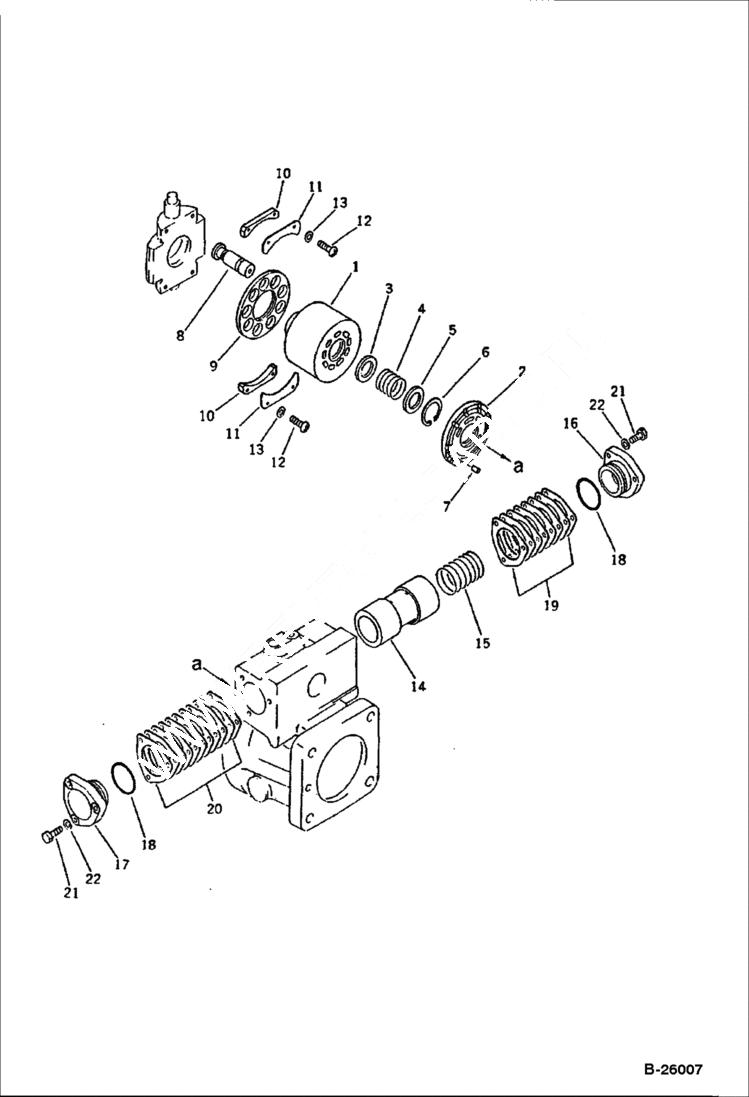

Запчасти Bobcat 130 HYDRAULIC PUMP - REAR 2/2 HYDRAULIC SYSTEM

1

6646440

PUMP ASSY See Illustration HYDRAULIC PUMP UNIT/ B26002 See Illustration HYDRAULIC PUMP/ B26003 See Illustration HYDRAULIC PUMP/ B26004 See Illustration HYDRAULIC PUMP/ B26005 See Illustration HYDRAULI

1

PUMP ASSY See Illustration HYDRAULIC PUMP UNIT/ B26002 See Illustration HYDRAULIC PUMP/ B26003 See Illustration HYDRAULIC PUMP/ B26004 See Illustration HYDRAULIC PUMP/ B26005 See Illustration HYDRAULI

1

PUMP ASSY See Illustration HYDRAULIC PUMP UNIT/ B26002 See Illustration HYDRAULIC PUMP/ B26003 See Illustration HYDRAULIC PUMP/ B26004 See Illustration HYDRAULIC PUMP/ B26005 See Illustration HYDRAULI

1

SUB ASSY See Illustration HYDRAULIC PUMP/ B26003 See Illustration HYDRAULIC PUMP - REAR/ B26006 See Illustration HYDRAULIC PUMP/ B26005 See Illustration HYDRAULIC PUMP/ B26004 pump - Komatsu S/N 22001

1

6646064

PUMP sub sub assembly

1

SUB ASSY block - rear - Was 708-21-00070

1

BLOCK cylinder - Was 6646087

2

PLATE,VALVE Was 708-21-13230

3

6640470

WASHER

4

6640471

SPRING

5

6640469

WASHER

6

6640472

RING

7

PIECE Was 720-68-19610

8

PISTON SUB ASS'Y Komatsu S/N 20501-22000 - Was 708-21-13351

8

6646091

PISTON Komatsu S/N 22001 & Abv

9

RETAINER,SHOE Was 708-21-13340

10

6640459

SHIM

10

SPACER 8,02 mm - Was 708-21-13420

10

SPACER 8,05 mm - Was 708-21-13430

10

SPACER 8,08 mm - Was 708-21-13440

11

RETAINER, BEARING Was 708-21-13450

12

SCREW Was 708-23-13460

13

6637155

WASHER

14

6646094

PISTON Komatsu S/N 20501-22000

14

6646094

PISTON Komatsu S/N 22001 & Abv.

15

6640473

RING spring

16

CAP Was 708-21-14230

17

CAP Was 708-21-14150

18

6637360

O-RING

19

6640460

KIT, SHIM

19

SHIM 0,10 mm - Was 708-21-14210

19

SHIM 0,10 mm - Was 708-21-14170

19

SHIM 0,20 mm - Was 708-21-14160

19

SHIM 0,50 mm - Was 708-21-14180

20

6646444

SHIM

20

SHIM 0,10 mm - Was 708-21-14210

20

SHIM 0,10 mm - Was 708-21-14170

20

SHIM 0,20 mm - Was 708-21-14160

20

SHIM 0,50 mm - Was 708-21-14180

21

6636944

BOLT

21

6636961

BOLT

22

6637156

WASHER
