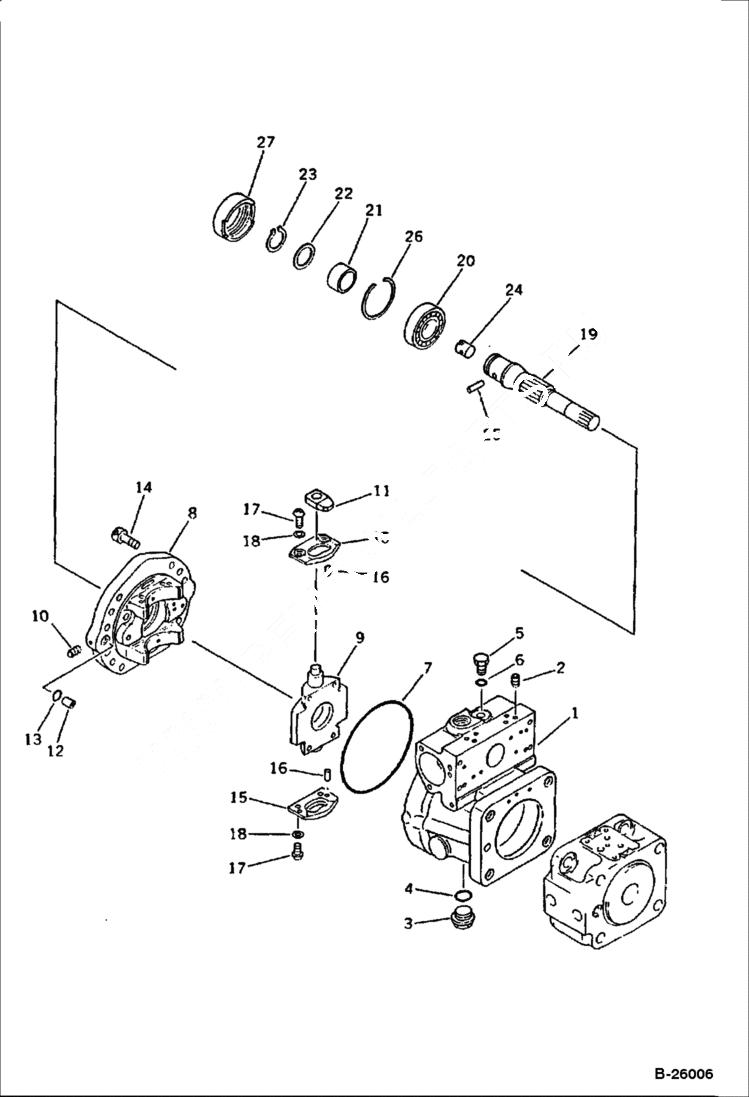

Запчасти Bobcat 130 HYDRAULIC PUMP - REAR 1/2 HYDRAULIC SYSTEM

1

6646440

PUMP ASSY See Illustration HYDRAULIC PUMP UNIT/ B26002 See Illustration HYDRAULIC PUMP/ B26003 See Illustration HYDRAULIC PUMP/ B26004 See Illustration HYDRAULIC PUMP - REAR/ B26007 See Illustration H

1

PUMP ASSY See Illustration HYDRAULIC PUMP UNIT/ B26002 See Illustration HYDRAULIC PUMP/ B26003 See Illustration HYDRAULIC PUMP/ B26004 See Illustration HYDRAULIC PUMP - REAR/ B26007 See Illustration H

1

PUMP ASSY See Illustration HYDRAULIC PUMP UNIT/ B26002 See Illustration HYDRAULIC PUMP/ B26003 See Illustration HYDRAULIC PUMP/ B26004 See Illustration HYDRAULIC PUMP - REAR/ B26007 See Illustration H

1

SUB ASSY See Illustration HYDRAULIC PUMP/ B26003 See Illustration HYDRAULIC PUMP - REAR/ B26007 See Illustration HYDRAULIC PUMP/ B26005 See Illustration HYDRAULIC PUMP/ B26004 pump - Komatsu S/N 22001

1

6646064

PUMP sub sub assembly

1

SUB ASSY case - rear - Was 708-21-00020

1

CASE rear - Was 6646066

2

6640378

PLUG

3

6637453

PLUG

4

6637411

O-RING

5

6640602

PLUG

6

6637408

O-RING

7

O-RING Was 07000-02145

8

CRADLE SUB ASS'Y,REAR Was 708-21-00040

8

CRADLE REAR Was 708-21-12321

9

ROCKER, CAM Was 708-21-13410

10

6640378

PLUG

11

SLIDER Was 708-21-14220

12

JOINT Was 708-21-12330

13

6637370

O-RING

14

BOLT Was 708-21-12380

15

PLATE Was 708-21-12340

16

PIN Was 708-23-12370

17

SCREW Was 708-21-12350

18

WASHER Was 708-21-12360

19

6646079

SHAFT

20

6646082

BEARING

21

COLLAR Was 708-21-12670

22

6640458

WASHER

22

WASHER 2,10 mm - Was 708-21-12790

22

WASHER 2,20 mm - Was 708-21-12810

22

WASHER 2,30 mm - Was 708-21-12820

22

WASHER 2,40 mm - Was 708-21-12830

23

6646443

SNAP RING

24

COUPLING Was 708-21-12931

25

PIN Was 708-21-12940

26

RING Was 708-21-12660

27

RETAINER Was 708-21-12650
