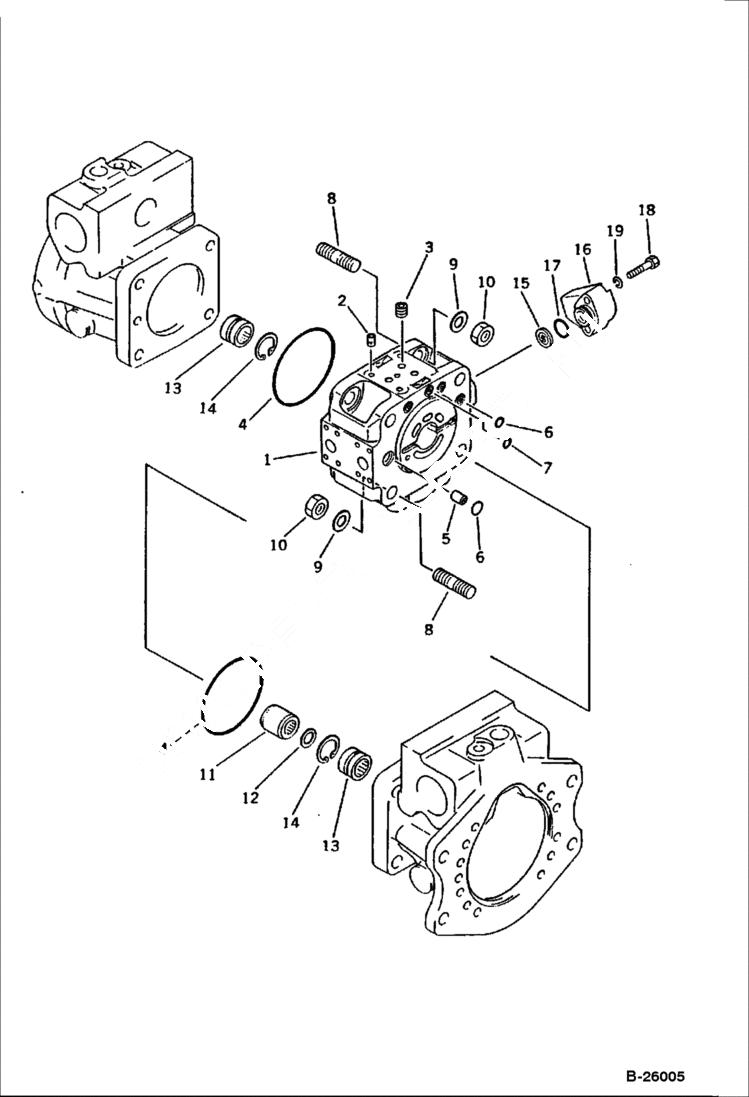

Запчасти Bobcat 130 HYDRAULIC PUMP End Cap HYDRAULIC SYSTEM

1

6646440

PUMP ASSY See Illustration HYDRAULIC PUMP UNIT/ B26002 See Illustration HYDRAULIC PUMP/ B26003 See Illustration HYDRAULIC PUMP/ B26004 See Illustration HYDRAULIC PUMP - REAR/ B26006 See Illustration H

1

PUMP ASSY See Illustration HYDRAULIC PUMP UNIT/ B26002 See Illustration HYDRAULIC PUMP/ B26003 See Illustration HYDRAULIC PUMP/ B26004 See Illustration HYDRAULIC PUMP - REAR/ B26006 See Illustration H

1

PUMP ASSY See Illustration HYDRAULIC PUMP UNIT/ B26002 See Illustration HYDRAULIC PUMP/ B26003 See Illustration HYDRAULIC PUMP/ B26004 See Illustration HYDRAULIC PUMP - REAR/ B26006 See Illustration H

1

SUB ASSY See Illustration HYDRAULIC PUMP/ B26003 See Illustration HYDRAULIC PUMP - REAR/ B26007 See Illustration HYDRAULIC PUMP - REAR/ B26006 See Illustration HYDRAULIC PUMP/ B26004 pump - Komatsu S/

1

6646064

PUMP sub sub assembly

1

SUB ASSY end cap - Was 708-21-00050

1

6646445

END CAP

2

6640378

PLUG

3

PLUG Was 6646074

4

6637348

O-RING

5

JOINT Was 708-21-12330

6

6637370

O-RING

7

6637368

O-RING

8

STUD Was 01140-81440

9

6637159

WASHER

10

NUT Was 01582-01411

11

COUPLING Was 708-21-12730

12

RING Was 708-21-12742

13

6646083

BEARING

14

RING,SNAP Was 04065-03212

15

6640601

FILTER

16

6640482

FLANGE

17

6637342

O-RING

18

6636945

BOLT

19

6637128

WASHER
