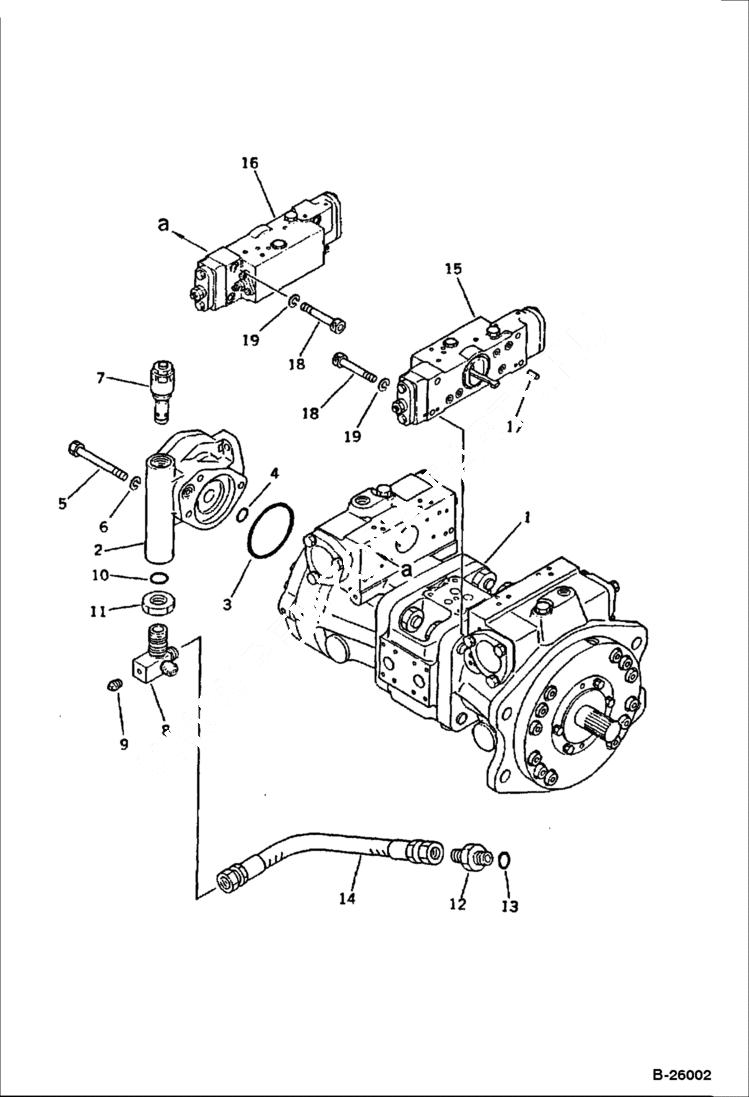

Запчасти Bobcat 130 HYDRAULIC PUMP UNIT HYDRAULIC SYSTEM

1

6646440

PUMP ASSY See Illustration HYDRAULIC PUMP - REAR/ B26006 See Illustration HYDRAULIC PUMP/ B26003 See Illustration HYDRAULIC PUMP/ B26004 See Illustration HYDRAULIC PUMP/ B26005 See Illustration HYDRAU

1

PUMP ASSY See Illustration HYDRAULIC PUMP - REAR/ B26006 See Illustration HYDRAULIC PUMP/ B26003 See Illustration HYDRAULIC PUMP/ B26004 See Illustration HYDRAULIC PUMP/ B26005 See Illustration HYDRAU

1

PUMP ASSY See Illustration HYDRAULIC PUMP - REAR/ B26006 See Illustration HYDRAULIC PUMP/ B26003 See Illustration HYDRAULIC PUMP/ B26004 See Illustration HYDRAULIC PUMP/ B26005 See Illustration HYDRAU

1

PUMP SUB ASS'Y Komatsu S/N 22001 & Abv. - Was 708-21-01110

1

6646064

PUMP sub sub assembly

1

SUB ASSY case - front - Komatsu S/N 20501 & Abv. - Was 708-21-00010

2

GEAR PUMP ASS'Y Komatsu S/N 20501 & Abv - Was 704-24-24401

2

6640294

PUMP ASSY gear - Komatsu S/N 20501-22000

3

6637347

O-RING

4

6637340

O-RING

5

6636949

BOLT

6

6637129

WASHER

7

VALVE ASSY relief - Komatsu S/N 20501 & Abv. - Was 708-23-14801

7

6640483

VALVE ASY relief - Komatsu S/N 20501-22000

8

6640493

ELBOW

9

6637442

PLUG

10

6637411

O-RING

11

6637593

NUT

12

6637580

NIPPLE

13

6637410

O-RING

14

6637492

HOSE

15

SERVO VALVE ASS'Y Komatsu S/N 20501 & Abv. - Was 708-21-07820

15

6646441

VALVE ASY servo - Komatsu S/N 20501-22940

16

SERVO VALVE ASS'Y Komatsu S/N 20501 & Abv. - Was 708-21-07920

16

6646442

VALVE ASY Komatsu S/N 20501-22000

17

6637174

PIN, DOWE

18

6640518

BOLT

19

6637134

WASHER
