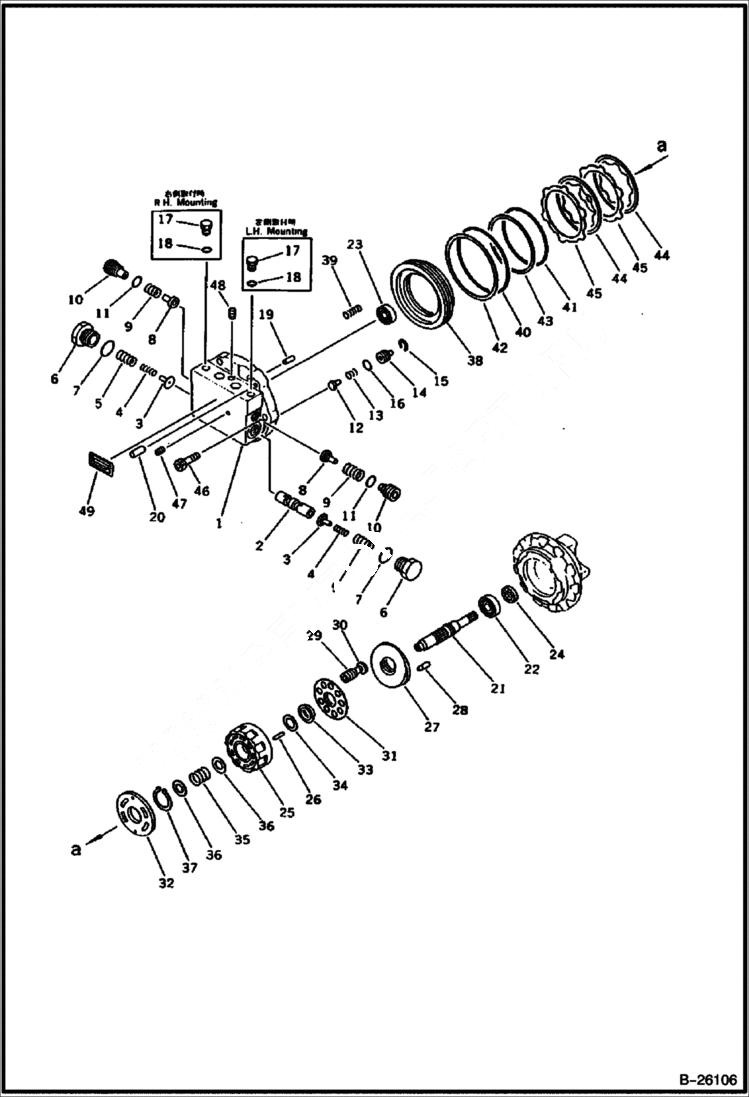

Запчасти Bobcat 130 TRAVEL MOTOR (1/2) PC60L, PC60LS HYDRAULIC SYSTEM

1

TRAVEL MOTOR ASS'Y See Illustration TRAVEL MOTOR (1/2)/ B26106 Was 201-60-57101

1

TRAVEL MOTOR ASS'Y See Illustration TRAVEL MOTOR (1/2)/ B26106 Komatsu S/N 7501-7590 - Was 201-60-57100

1

MOTOR ASS''Y Was TZ910A200000GC

1

FLANGE KIT Was TZ880A210100-A

1

FLANGE,REAR Was TZ880A2001-00

2

SPOOL Was TZ861A2050-00-A

3

6641747

STOPPER

4

6641758

SPRING

5

6641746

SPRING

6

6641742

PLUG

7

6669518

ORING

8

6641744

VALVE

9

6641745

SPRING

10

6641743

PLUG

11

6642084

O-RING KT

12

6641739

VALVE

13

6641740

SPRING

14

6641738

SEAT valve

15

6641666

RING

16

6637367

O-RING

17

6641665

PLUG

18

6637410

O-RING

19

PIN, DOWEL Was TZJB1354-4-10

20

PIN, DOWEL Was TZJB1354-8-25

21

SHAFT Was TZ910A2002-00

22

6641757

BEARING

23

6642074

BEARING

24

6669493

OIL SEAL

25

6641750

BLOCK

26

6669516

ROLR NEDL

27

PLATE,SWASH Was TZ850A200301-G

28

6641725

PIN

29

6657736

PISTON AY

29

6641741

PISTON AS

29

6669512

PISTON

30

6669513

PISTON SH

31

6641728

PLATE

32

6641737

PLATE

33

6641751

BALL

34

6641753

WASHR SET

35

6641756

SPRING

36

6641752

WASHER

37

RING,SNAP Was TZIRTW-42

38

6641754

PISTON

39

6641755

SPRING

40

6642086

O-RING KT

41

6669521

ORING

42

6669525

BCKUPRNG

43

6669526

BCKUPRNG

44

6641723

PLATE

45

6641724

PLATE

46

6646652

BOLT

47

PLUG Was TZGM1-8

48

EXPANDER Was TZMB700-050

49

PLATE, NAME Was TZ850A0006-00
