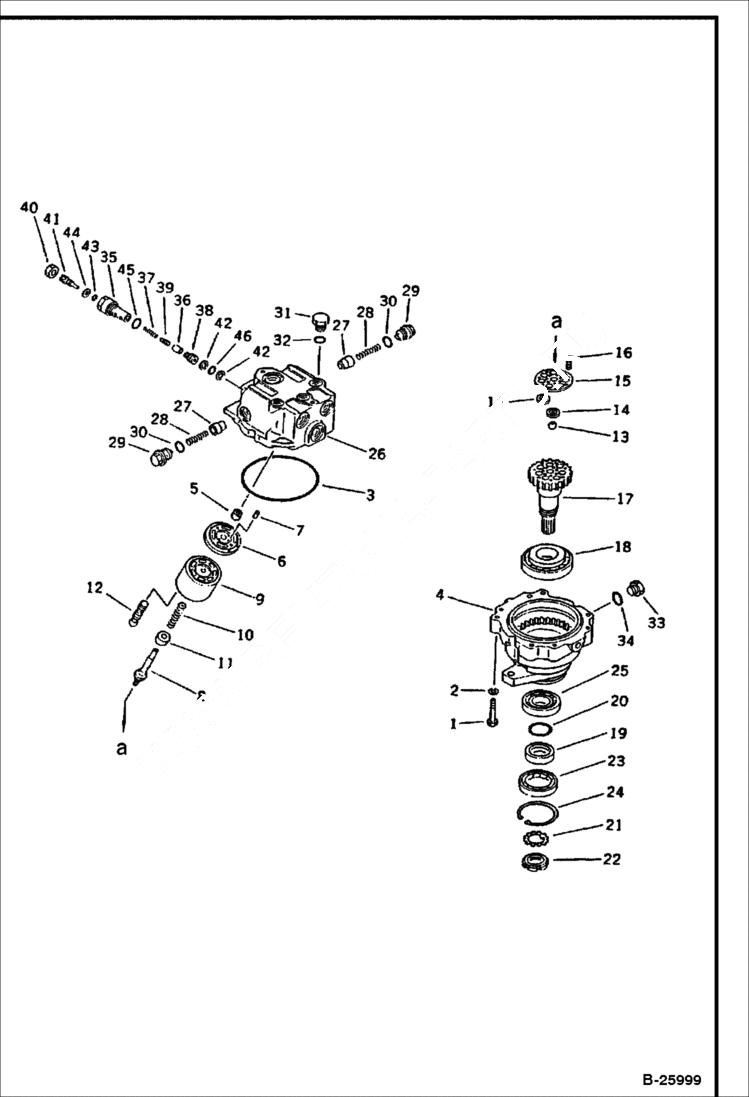

Запчасти Bobcat 130 SWING MOTOR Without Swing Mechanical Brake HYDRAULIC SYSTEM

1

6645547

MOTOR ASY

1

6636973

BOLT

2

6637135

WASHER

3

6640350

RING

4

6640346

HOUSING case - brake

5

6640337

BEARING

6

6640353

SHIELD valve

7

6637174

PIN, DOWE

8

6640347

SHAFT center

9

6640338

BLOCK cylinder

10

6640339

SPRING

11

6640340

RING

12

6640341

PISTON

13

6640342

BALL

14

6640343

RETAINER

15

6640348

RETAINER

15

6640344

RETAINER Komatsu S/N 20501 & Abv

16

6640349

SCREW

16

6640345

SCREW Komatsu S/N 20501 & Abv

17

SHAFT, DRIVE Was 706-73-42761

17

6640351

SHAFT drive - Komatsu S/N 20501 - Order 6640348, 6640349 & 706-73-42761

18

6640372

BEARING

19

6640375

RING

20

6637359

O-RING

21

6637163

WASHER lock

22

6637101

NUT

23

6640377

SEAL, OIL

24

6637235

RING, SNAP

25

6640374

BEARING

26

6640354

HOUSING

27

6640358

VALVE

28

6640360

SPRING

29

6640359

PLUG

30

6637418

O-RING

31

6637437

PLUG

32

6637417

O-RING

33

6637435

PLUG

34

6637409

O-RING

35

6645605

VALVE ASY

35

SLEEVE Was 706-73-75360

36

6640357

VALVE

37

6640363

SPRING

38

6640356

VALVE seat

39

6640361

PISTON

40

6640364

NUT

41

6640362

SCREW

42

6637396

RING, BACK-UP

43

6637367

O-RING

44

6637393

RING, BACK-UP

45

6637418

O-RING

46

6637391

O-RING
