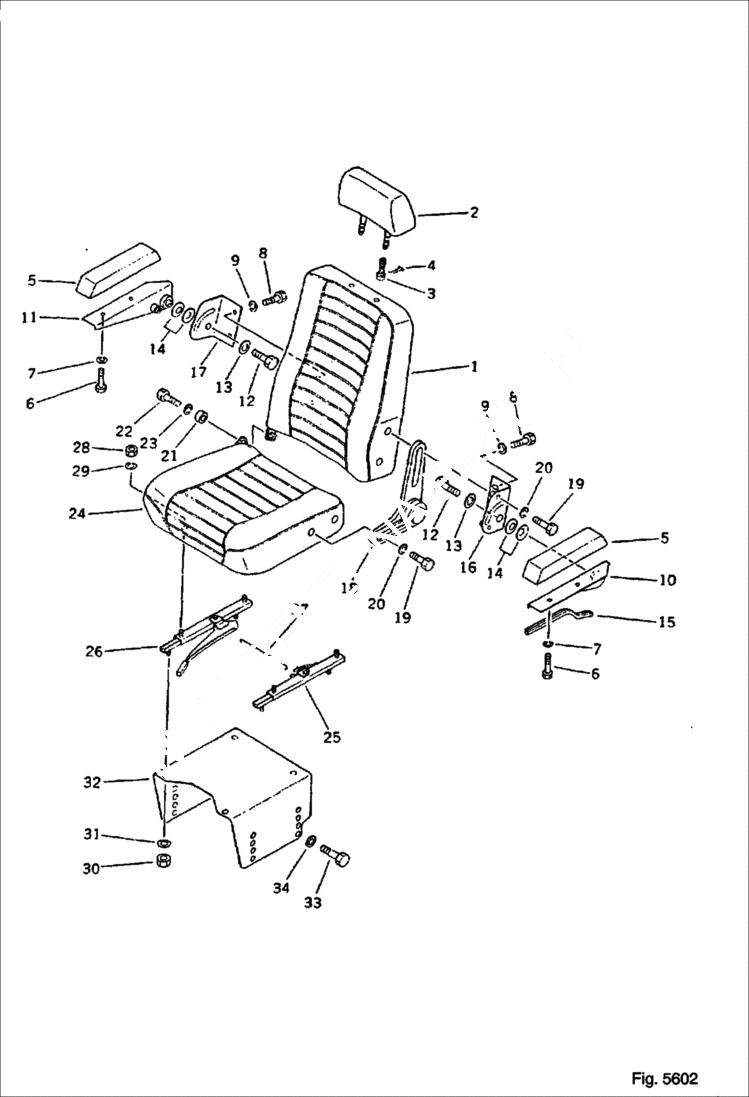

Запчасти Bobcat 130 OPERATORS SEAT With Arm Rest For USA REVOLVING FRAME, GUARD AND CAB

1

6643102

SEAT ASY

1

6643104

CUSH. BAC

2

6643106

HEAD

3

HOLDER Was 205-57-72420

4

SPRING Was 205-57-72430

5

6639389

ARM REST

6

6636961

BOLT

7

6637134

WASHER

8

6636966

BOLT

9

6637135

WASHER

10

6639391

BRACE LH

11

6643107

SUPPORT RH

12

6636978

BOLT

13

6637158

WASHER

14

6637886

SPRING

15

6639392

SEAL

16

6639390

BRACKET LH

17

6643105

BRACKET RH

18

6639384

LEVER

19

6636966

BOLT

20

6637135

WASHER

21

6639208

SHIM

22

6636966

BOLT

23

6637135

WASHER

24

6643101

CUSHION A

24

6639388

CUSHION

25

6639385

REGULATOR

26

6639386

REGULATOR

27

6639387

BAR

28

6637109

NUT

29

6637136

WASHER

30

6637109

NUT

31

6637158

WASHER

32

6643061

BRACKET

33

6636980

BOLT

34

6637158

WASHER
