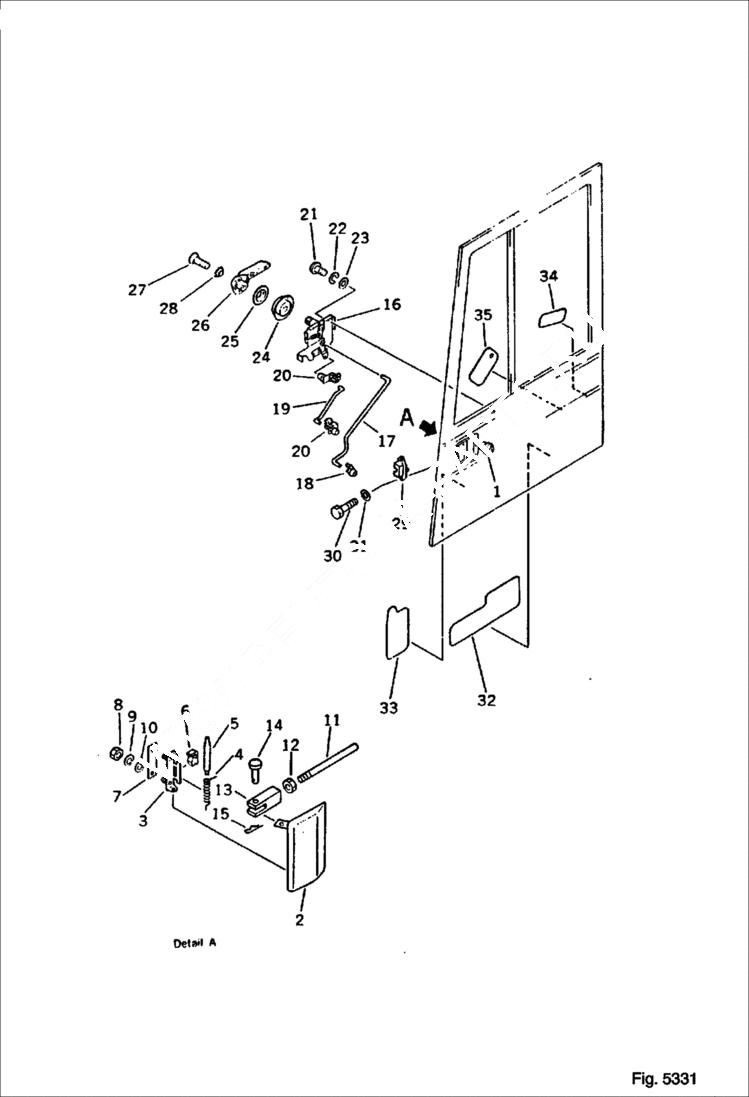

Запчасти Bobcat 130 OPERATORS CAB 6/6 REVOLVING FRAME, GUARD AND CAB

1

OPERATOR'S CAB ASS'Y See Illustration OPERATOR'S CAB/ 5321 See Illustration OPERATOR'S CAB/ 5323 See Illustration OPERATOR'S CAB/ 5329 See Illustration OPERATOR'S CAB/ 5327 See Illustration OPERATOR'S

1

DOOR ASS'Y See Illustration OPERATOR'S CAB/ 5329 Was 201-54-00520

1

6639316

LOCK ASSY

2

6639332

HANDLE AS

2

HANDLE Was 205-54-72111

3

BRACKET Was 205-54-72121

4

6639333

SPRING

5

6639334

PIN

6

6639335

CUSHION

7

6639336

PACKING

8

6637106

NUT

9

6637133

WASHER

10

6637145

WASHER

11

6639377

ROD

12

6637106

NUT

13

6637266

YOKE

14

6637252

PIN

15

6637211

PIN

16

6639324

CONTROL ASSY remote

16

6643091

CONTROL remote

17

6643088

ROD

18

6639328

RING, SNAP

19

6643092

ROD

20

6639327

RING, SNAP

21

6637038

SCREW

22

6637133

WASHER

23

6637145

WASHER

24

6639909

MOUNT

25

6639910

ESCUTCHEO washer

26

6639322

HANDLE

27

6637046

SCREW

28

6639329

WASHER

29

6639319

LOCK ASY

30

6636953

BOLT

31

6637155

WASHER

32

6639349

SEAL

33

6639350

SEAL

34

6643090

SEAL

35

6639323

SEAL
