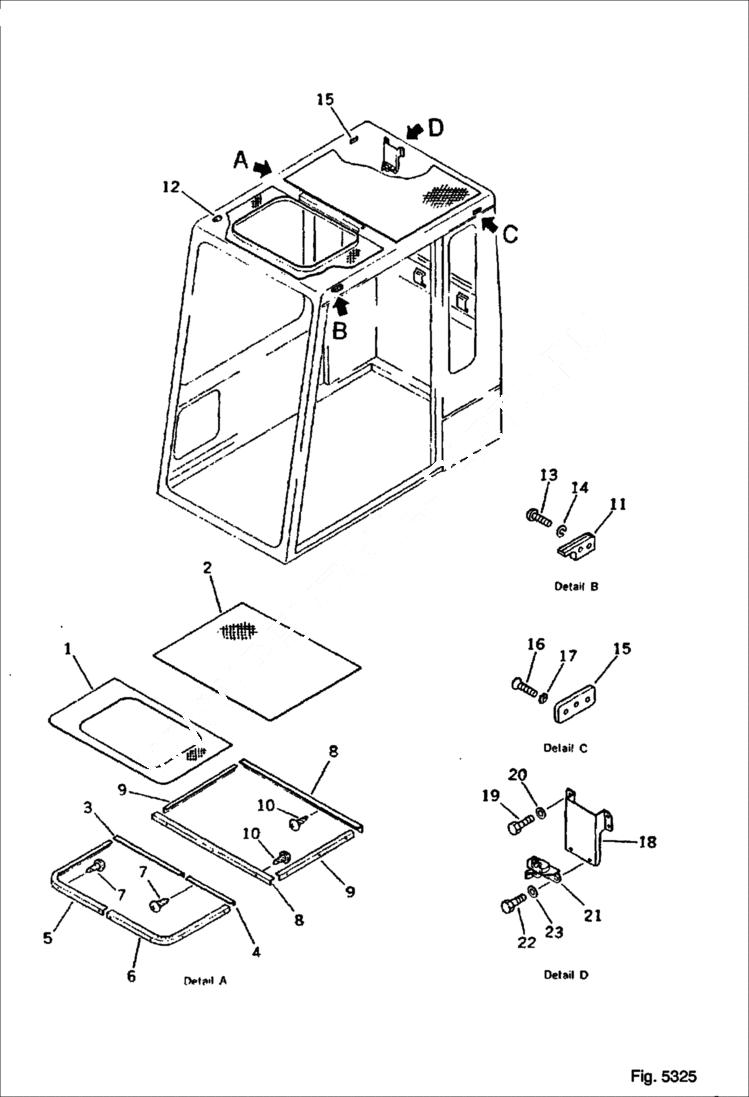

Запчасти Bobcat 130 OPERATORS CAB 3/6 REVOLVING FRAME, GUARD AND CAB

1

OPERATOR'S CAB ASS'Y See Illustration OPERATOR'S CAB/ 5321 See Illustration OPERATOR'S CAB/ 5323 See Illustration OPERATOR'S CAB/ 5331 See Illustration OPERATOR'S CAB/ 5329 See Illustration OPERATOR'S

1

6639341

LINING

2

6639342

LINING

3

6639344

SHIELD

4

6639345

SHIELD

5

6639343

SHIELD

6

6639374

PLATE

7

6637064

SCREW

8

6639347

SHIELD

9

6639346

SHIELD

10

6637064

SCREW

11

6639355

BRACKET LH

12

6639356

BRACKET RH

13

6637041

SCREW

14

6637133

WASHER

15

6639369

LOCK

16

6637044

SCREW

17

6639367

WASHER

18

6639358

BRACKET

19

6636957

BOLT

20

6637156

WASHER

21

6639290

LOCK ASSY

22

6636958

BOLT

23

6637156

WASHER
