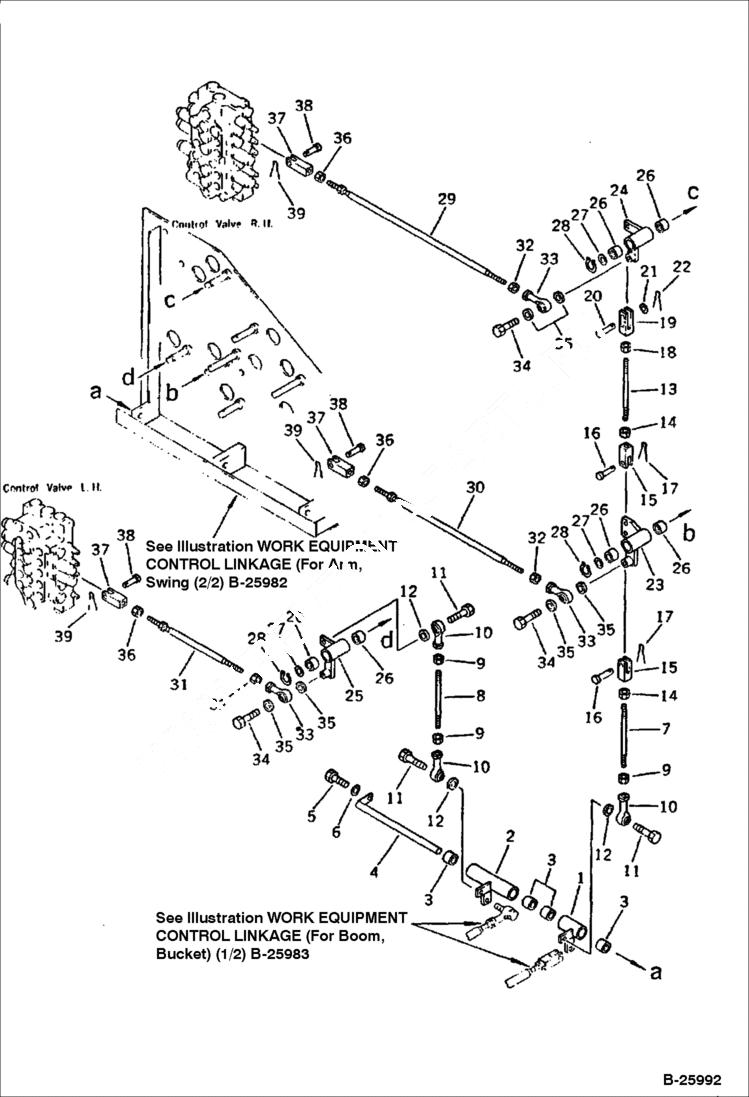

Запчасти Bobcat 130 SPECIAL WORK EQUIPMENT CONTROL LINKAGE 2/3 CONTROL SYSTEM

1

6639703

LEVER

2

6639715

LEVER

3

6637893

BEARING

4

6639700

SHAFT

5

6636967

BOLT

6

6637157

WASHER

7

6637280

ROD

8

6637278

ROD

9

6637113

NUT

10

6637307

END

11

6636968

BOLT

12

6637157

WASHER

13

6637279

ROD

14

6637113

NUT

15

6637264

YOKE

16

6637258

PIN

17

6637199

PIN, COTTER

18

6637113

NUT

19

6639140

YOKE

20

6637259

PIN

21

6637147

WASHER

22

6637199

PIN, COTTER

23

6642983

LEVER

24

6639712

LEVER

25

6639706

LEVER

26

6637893

BEARING

27

6637159

WASHER

28

6637217

SNAP RING

29

6639708

ROD

30

6639707

ROD

31

6637301

ROD

32

6637100

NUT LH threads

33

6637308

ROD END

34

6636968

BOLT

35

6637157

WASHER

36

6637113

NUT

37

6639069

YOKE

38

6637253

PIN

39

6637195

PIN, COTT
