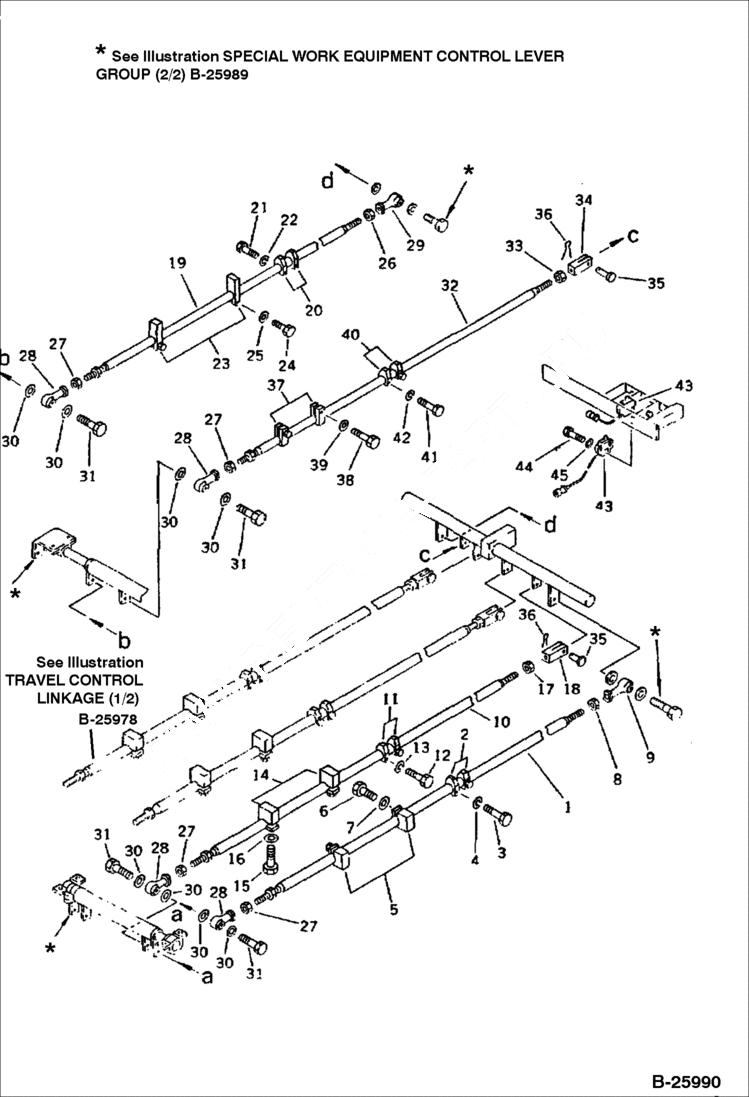

Запчасти Bobcat 130 SPECIAL WORK EQUIPMENT CONTROL ROD GROUP CONTROL SYSTEM

1

ROD Was 20X-43-24250

2

6639723

SHIELD

3

6636960

BOLT

4

6637134

WASHER

5

6639188

SHIELD

6

6636968

BOLT

7

6637157

WASHER

8

6637100

NUT LH threads

9

6637308

ROD END LH threads

10

6646040

ROD

11

6639723

SHIELD

12

6636960

BOLT

13

6637134

WASHER

14

6639188

SHIELD

15

6636968

BOLT

16

6637157

WASHER

17

6637100

NUT LH threads

18

6637271

YOKE

19

6639726

ROD

20

6639723

SHIELD

21

6636960

BOLT

22

6637134

WASHER

23

6639724

SHIELD

24

6636968

BOLT

25

6637157

WASHER

26

6637100

NUT LH threads

27

6637113

NUT

28

6637307

END

29

6637308

ROD END LH threads

30

6637157

WASHER

31

6636968

BOLT

33

6637100

NUT LH threads

34

6637271

YOKE

35

6637258

PIN

36

6637199

PIN, COTTER

37

6639725

SHIELD

38

6636968

BOLT

39

6637157

WASHER

40

6639723

SHIELD

41

6636960

BOLT

42

6637134

WASHER

43

6639891

SWITCH limit

44

6636969

BOLT

45

6637157

WASHER
