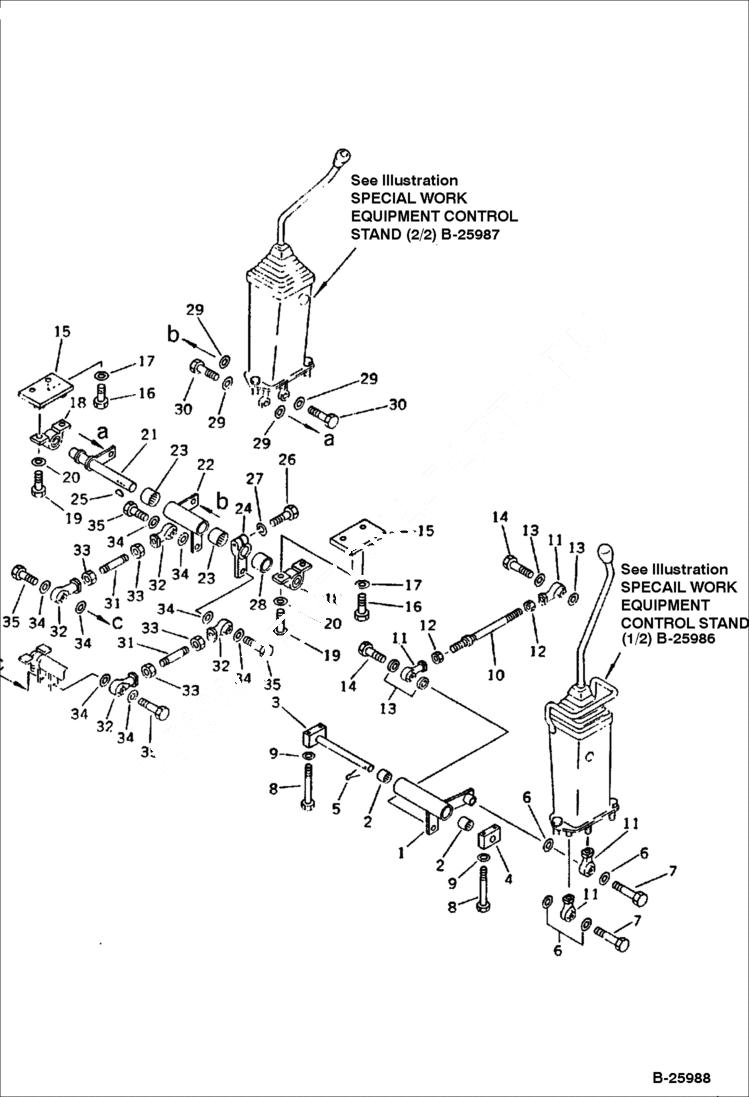

Запчасти Bobcat 130 SPECIAL WORK EQUIPMENT CONTROL LEVER GROUP 1/2 CONTROL SYSTEM

1

LEVER Was - 20X-43-24150

2

6637894

BEARING

3

SHAFT Was 203-43-42691

4

6639171

BLOCK

5

6637201

PIN, COTT

6

6637157

WASHER

7

6636968

BOLT

8

6636974

BOLT

9

6637157

WASHER

10

ROD Was 04245-41013

11

6637307

END

12

6637113

NUT

13

6637157

WASHER

14

6636968

BOLT

15

BRACKET Was 20X-43-24240

16

6636967

BOLT

17

6637157

WASHER

18

BEARING Was 06125-02051

19

6636957

BOLT

20

6637156

WASHER

21

SHAFT RH - Was 20X-43-24190

22

LEVER RH Was 20X-43-24210

23

6637894

BEARING

24

LEVER RH Was 20X-43-24230

25

6637173

KEY

26

6636960

BOLT

27

6637134

WASHER

28

6646037

SPACER

29

6637157

WASHER

30

6636968

BOLT

31

ROD Was 04245-40805

32

6645871

END

33

6637107

NUT

34

6637156

WASHER

35

6636959

BOLT
