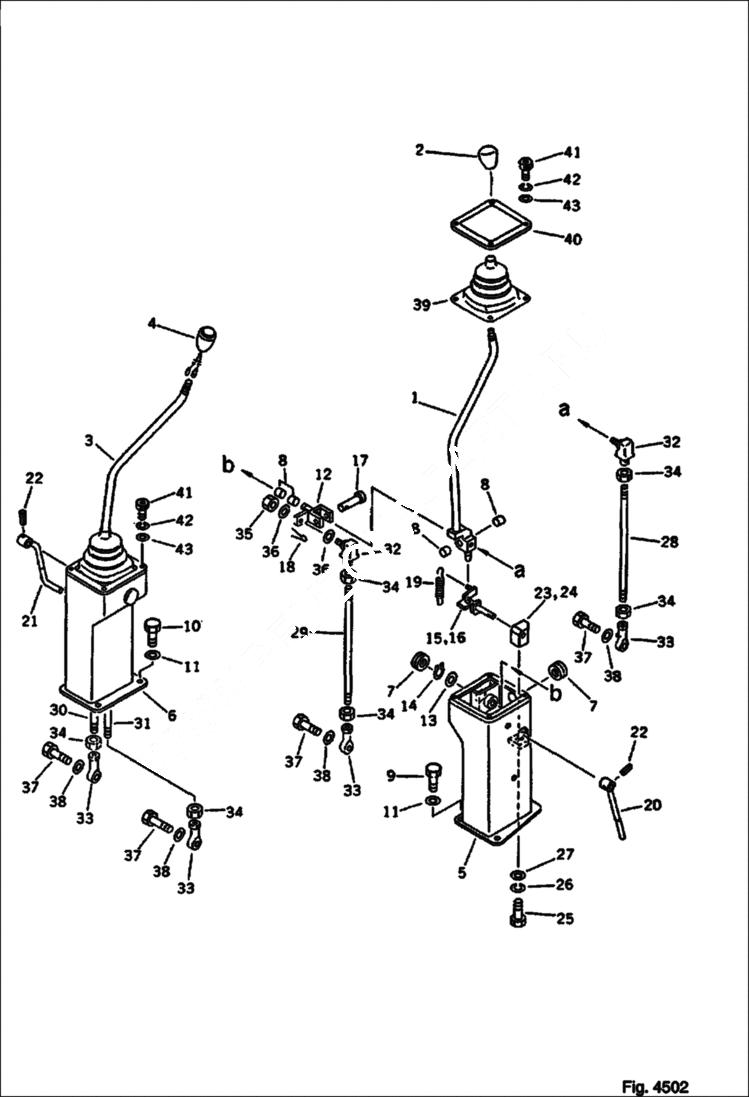

Запчасти Bobcat 116 WORK EQUIPMENT CONTROL LEVER AND LINKAGE FOR I.S.O. PATTERN CONTROL SYSTEM AND REVOLVING FRAME

1

6639177

LEVER L.H.

2

6637900

KNOB

3

6639178

LEVER R.H.

4

6638643

SWITCH horn

5

6638735

STAND L.H.

6

6638736

STAND R.H.

7

6637758

CAP

8

6639170

BUSHING

9

6636980

BOLT

10

6636979

BOLT

11

6637158

WASHER

12

6639280

YOKE

13

6637148

WASHER

14

6637217

SNAP RING

15

6638738

LEVER L.H.

16

6638739

LEVER R.H.

17

6637262

PIN

18

6637203

PIN, COTT

19

6637849

SPRING

20

6638740

LEVER L.H.

21

6639285

LEVER R.H.

22

6637188

PIN, ROLL

23

6638737

BLOCK L.H.

24

6638741

BLOCK R.H.

25

6636959

BOLT

26

6637134

WASHER

27

6637156

WASHER

28

6637288

ROD

29

6637285

ROD

30

6642817

ROD

31

6637285

ROD

32

6639406

CONNECTOR

33

6637307

END

34

6637113

NUT

35

6637113

NUT

36

6637157

WASHER

37

6636969

BOLT

38

6637157

WASHER

39

6639189

BELLOWS

40

6639281

COVER

41

6639255

BOLT

42

6639256

WASHER

43

6639257

WASHER
