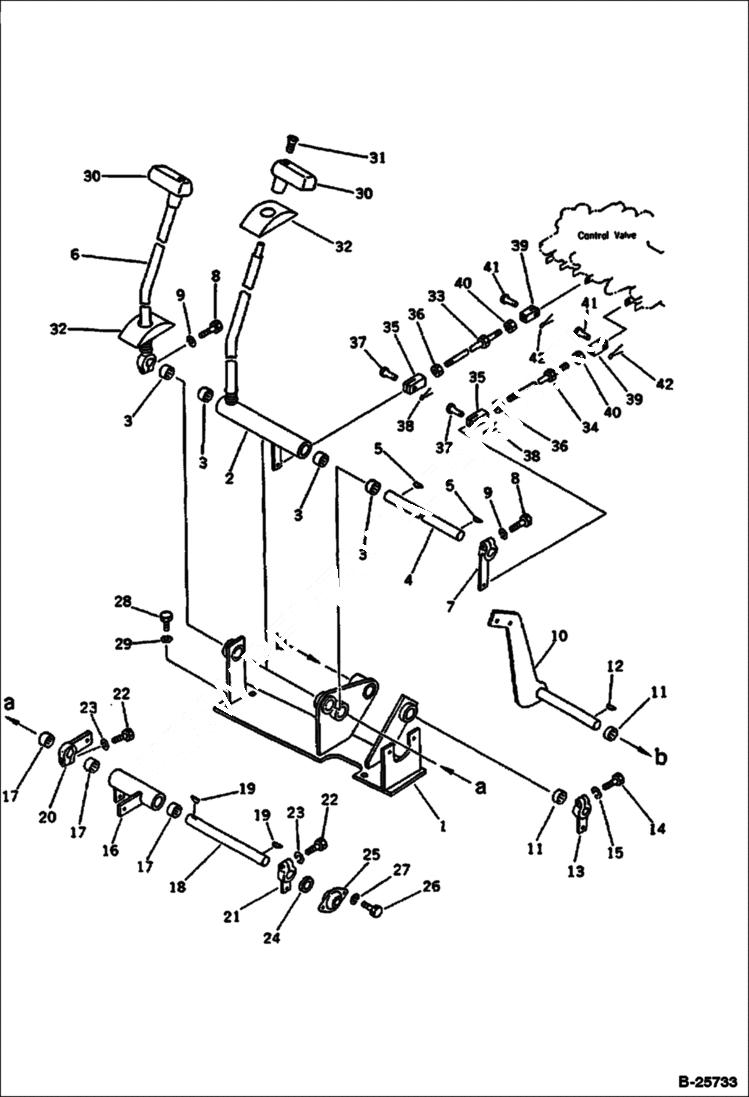

Запчасти Bobcat 116 TRAVEL CONTROL LEVER AND LINKAGE CONTROL SYSTEM AND REVOLVING FRAME

1

6642903

BRACKET A

1

6642910

BRACKET

2

6638693

LEVER L.H.

3

6637894

BEARING

4

6638697

SHAFT

5

6637173

KEY

6

6638694

LEVER R.H.

7

6638695

LEVER

8

6636960

BOLT

9

6637134

WASHER

10

6642913

LEVER

11

6637894

BEARING

12

6637173

KEY

13

6642914

LEVER

14

6636960

BOLT

15

6637134

WASHER

16

6642911

LEVER

17

6637894

BEARING

18

6642912

SHAFT

19

6637173

KEY

20

6642804

LEVER

21

6642807

LEVER

22

6636960

BOLT

23

6637134

WASHER

24

6642916

SPACER

25

6642915

BEARING

26

6636957

BOLT

27

6637134

WASHER

28

6636967

BOLT

29

6637135

WASHER

30

6639172

KNOB

31

6637047

SCREW

32

6638686

COVER

33

6637298

ROD

34

6637297

ROD

35

6638691

YOKE l.h. thread

36

6637100

NUT l.h. thread

37

6637255

PIN

38

6637196

PIN, COTT

39

6638709

YOKE

40

6637113

NUT

41

6637248

PIN

42

6637193

PIN
