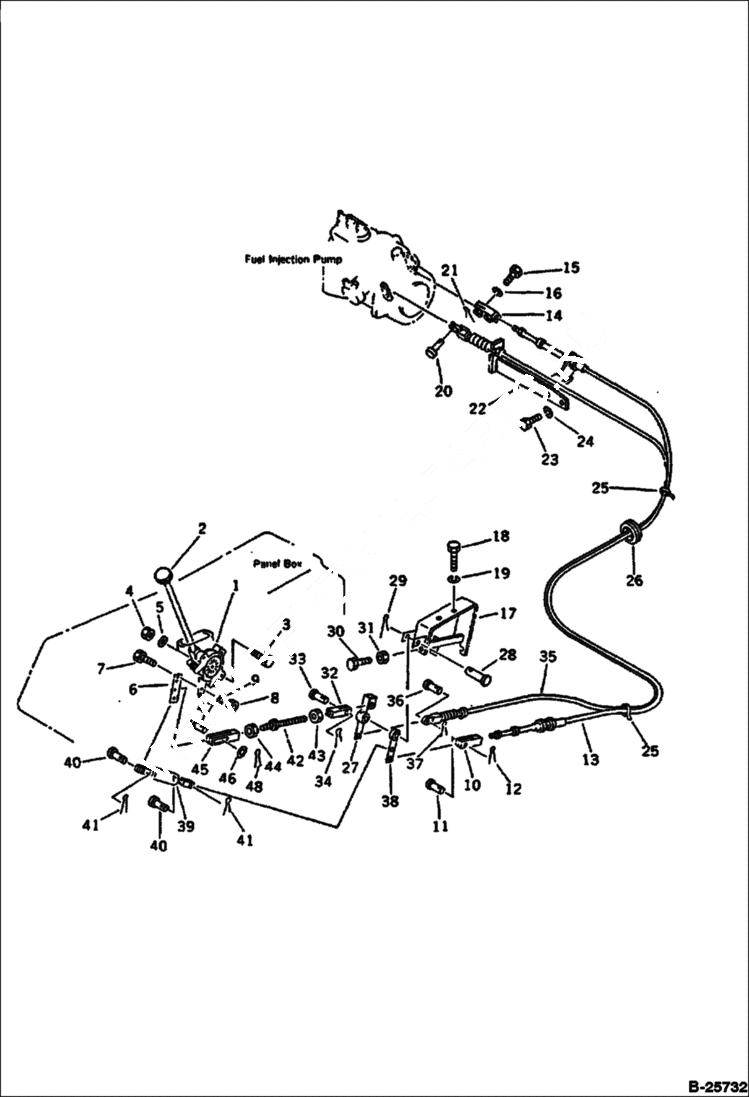

Запчасти Bobcat 116 FUEL CONTROL LEVER AND LINKAGE CONTROL SYSTEM AND REVOLVING FRAME

1

6639454

LEVER ASSY

2

6638565

KNOB

3

6636968

BOLT

4

6637108

NUT

5

6637157

WASHER

6

PLATE Was 20T-43-32261

7

6636953

BOLT

8

6637106

NUT

9

6637133

WASHER

10

6639444

YOKE

11

6637251

PIN

12

COTTER PIN Was 04205-10610

13

6639446

CABLE

14

6639449

YOKE

15

6636954

BOLT

16

6637133

WASHER

17

BRACKET Was 20T-43-32251

18

6636967

BOLT

19

6637135

WASHER

20

6637250

PIN

21

6637194

PIN, COTTER

22

6639450

BRACKET

23

6636970

BOLT

24

6637135

WASHER

25

6637680

BAND

26

6637703

GROMMET

27

LEVER Was 20T-43-32350

28

PIN Was 430-44-22220

29

COTTER PIN Was 04050-14028

30

6636966

BOLT

31

6637108

NUT

32

YOKE Was 04221-20634

33

6637251

PIN

34

6637195

PIN, COTT

35

6642920

CABLE

36

6637250

PIN

37

COTTER PIN Was 04050-11610

38

LEVER Was 20T-43-32340

39

SPRING Was 20T-43-32320

40

6637251

PIN

41

6637195

PIN, COTT

42

ROD Was 04248-20610

43

NUT Was 01508-20603

44

NUT Was 01508-10605

45

YOKE Was 175-43-83920

46

6637145

WASHER

47

6637252

PIN

48

6637195

PIN, COTT
