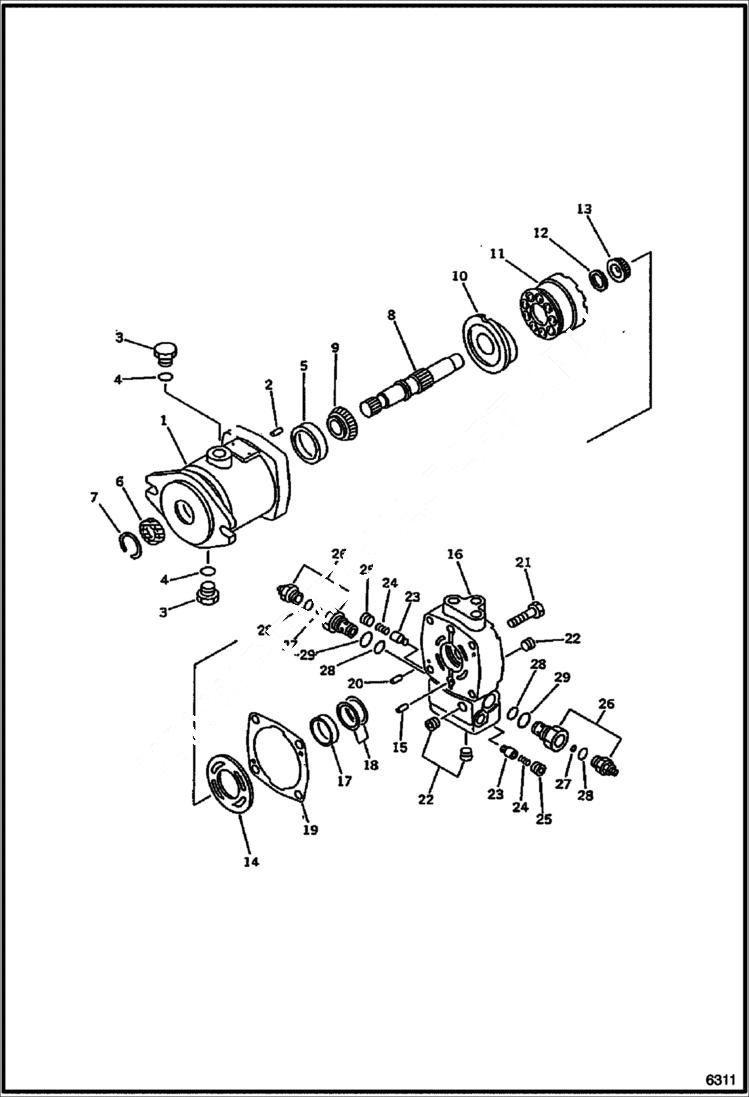

Запчасти Bobcat 116 SWING MOTOR SWING AND FINAL DRIVE

1

6639545

MTR ASSY Was 6658436 - A

1

HOUSING ASS'Y Was ST250010

1

HOUSING Was ST250011

2

DOWEL PIN Was ST250081

3

PLUG ASS'Y Was ST025090-012

3

PLUG Was ST096047-012

4

O-RING Was ST008785-012

5

CUP Was ST250012

6

SEAL, OIL Was ST250014

7

RETAINER Was ST250131

8

DRIVE SHAFT ASS'Y Was STEE0099B

8

SHAFT, DRIVE Was STEE0098B

9

CONE Was ST250013

10

PLATE Was ST250018

11

ROTATING ASS'Y Was ST250000

12

SPACER Was ST250095

13

CONE Was ST250019

14

PLATE Was ST250025

15

DOWEL PIN Was ST250021

16

COVER Was STEE0097D

17

CUP Was ST250020

18

SHIM Was ST250022

19

GASKET Was ST250023

20

DOWEL PIN Was ST250021

21

BOLT Was ST095864-250

22

PLUG Was STDW0038A-003

23

CHECK VALVE Was STEE0205B

24

SPRING Was STEE0203B

25

PLUG Was STDW0038A-003

26

RELIEF VALVE ASS'Y Was STEE0207B-195

27

O-RING Was STDW0002B-008

28

O-RING Was STDW0002B-016

29

O-RING Was STDW0002B-021
