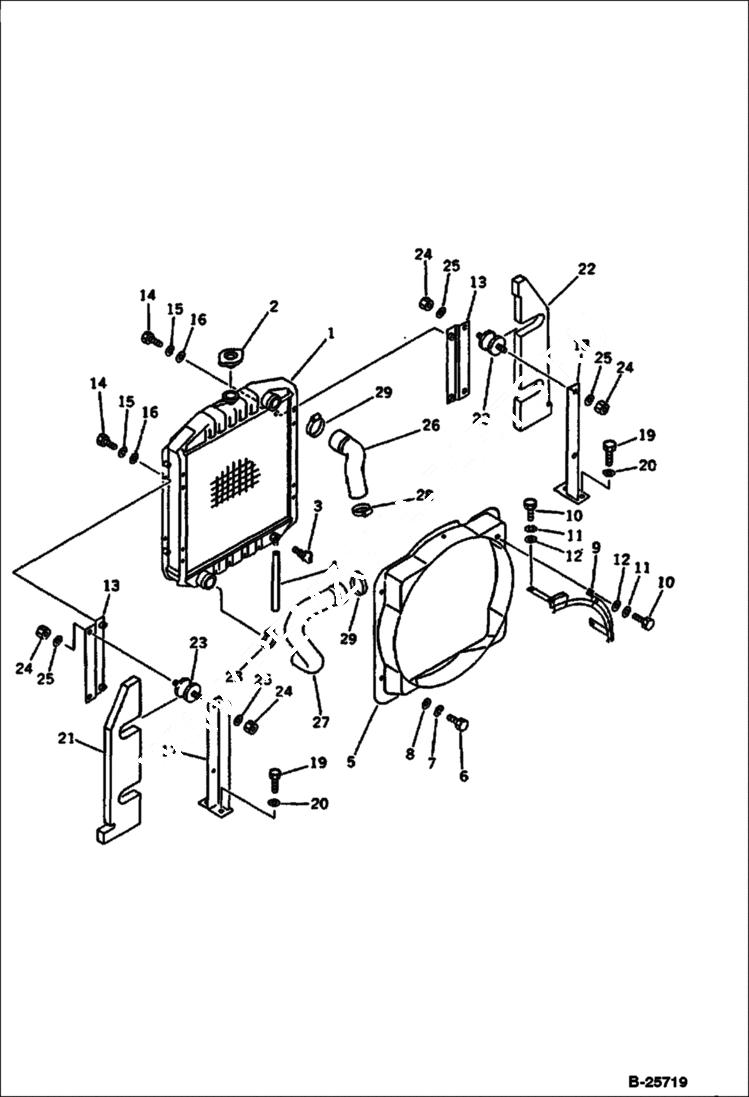

Запчасти Bobcat 116 RADIATOR AND PIPING ENGINE RELATED PARTS AND ELECTRICAL SYSTEM

1

6638976

RADIATOR

1

6638977

CORE ASSY

1

OIL COOLER See Illustration HYDRAULIC BREAKER/ SC1093 - for hydraulic breaker

2

6639024

CAP

3

6639252

PLUG

4

6637609

TUBE

5

6638983

SHIELD

6

6636957

BOLT

7

6637134

WASHER

8

6637156

WASHER

9

6638984

NET

10

6636957

BOLT

11

6637134

WASHER

12

6637156

WASHER

13

6638978

BRACKET

14

6636958

BOLT

15

6637134

WASHER

16

6637156

WASHER

17

6638979

BRACKET

18

6638980

BRACKET

19

6636967

BOLT

20

6637157

WASHER

21

6638985

SHEET

22

6638986

SHEET

23

6638612

CUSHION

24

6637108

NUT

25

6637157

WASHER

26

6638981

HOSE

27

6638982

HOSE

28

6637626

CLAMP

29

6637627

CLAMP
