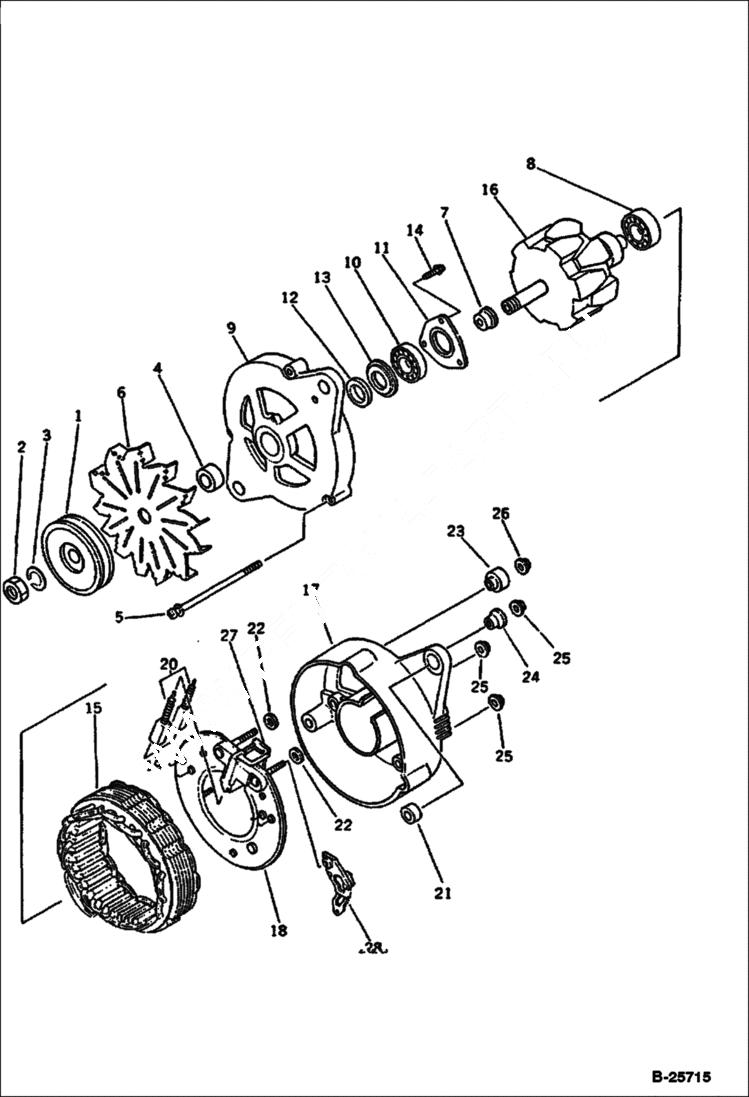

Запчасти Bobcat 116 ALTERNATOR (35A) ELECTRICAL SYSTEM

1

6639939

ALTERNATOR

1

6636193

PULLEY

2

6646783

NUT

3

6646784

WASHER

4

6646785

COLLAR

5

6646786

BOLT

6

6646787

FAN

7

6646788

COLLAR

8

6636209

BEARING

9

6636196

FRAME ASSY

10

6636208

BEARING

11

6646789

RETAINER

12

6646790

WASHER

13

6646791

COVER

14

6636206

SCREW

15

6636194

STATOR

16

6636195

ROTOR ASSY

17

FRAME, REAR Was ND021501-4940

18

6636199

RECTIFIER

19

6636198

BRUSH

20

6636213

SPRING

21

BUSHING Was ND021541-0321

22

BUSHING Was ND021605-0890

23

BUSHING Was ND021605-0301

24

6636197

INSULATOR

25

6636207

NUT

26

6646795

NUT

27

6646796

WASHER

28

6636200

REGULATOR assembly
