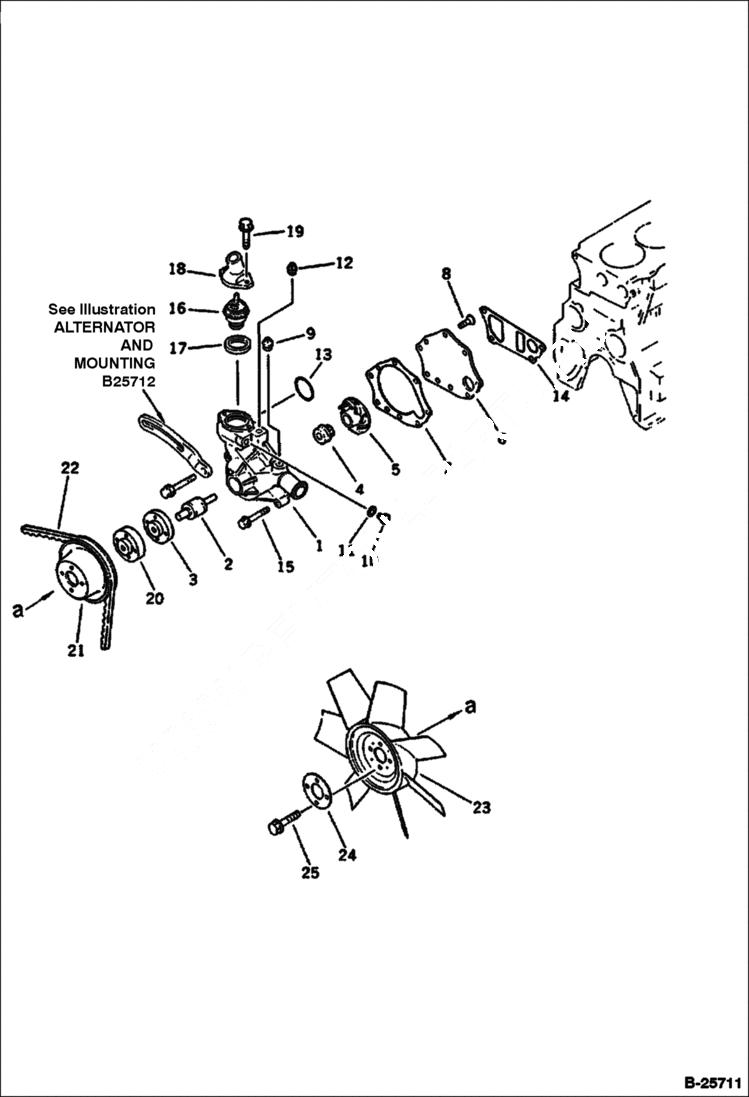

Запчасти Bobcat 116 WATER PUMP AND COOLING FAN COOLING SYSTEM

1

6640152

PUMP ASSY

1

6640153

HOUSING

2

6640197

SHAFT

3

6640157

BOSS

4

6640159

SEAL

5

6640156

IMPELLER

6

6640154

COVER

7

6640155

GASKET

8

6637048

SCREW

9

6637440

PLUG

10

6640214

PLUG

11

6637424

SEAL

12

6642095

PLUG

13

6637359

O-RING

14

6640198

GASKET

15

6637085

BOLT

16

6639929

THERMOSTA

17

6639956

GASKET

18

6640050

CONNECTOR

19

6637082

BOLT

20

6640162

SHIM

21

6640031

PULLEY

22

6639965

BELT, V

23

FAN NLA - Was 6644833 - A

24

6643125

PLATE

25

6642027

BOLT
