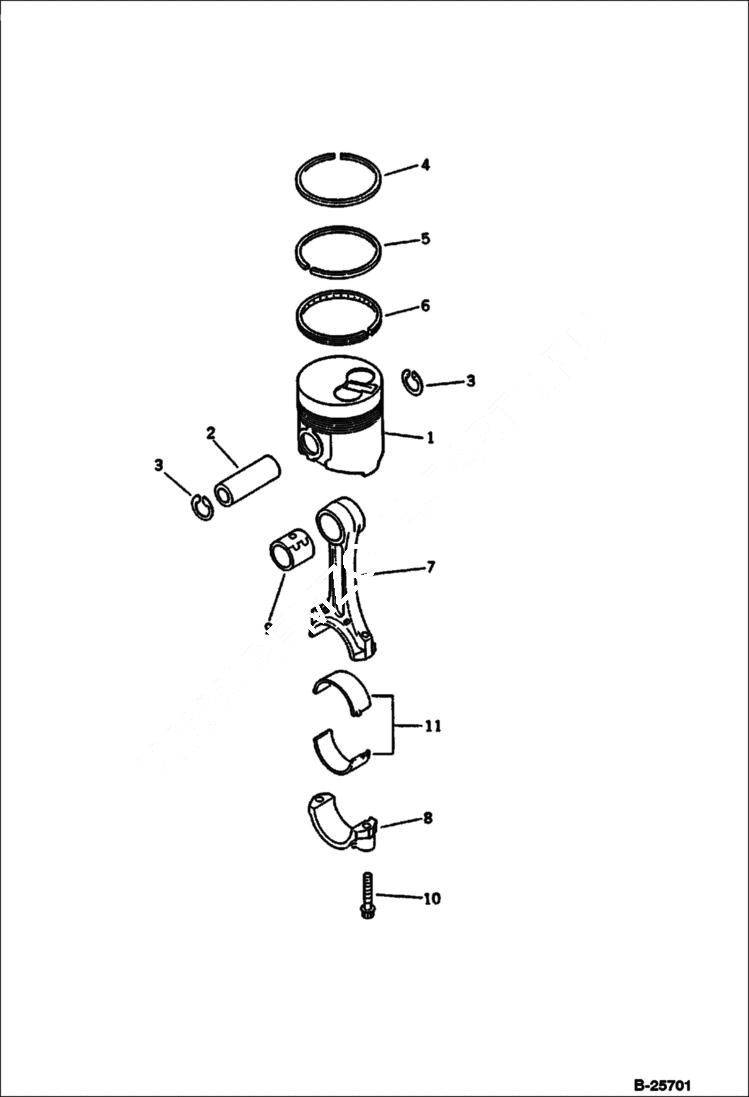

Запчасти Bobcat 116 PISTON AND CONNECTING ROD CYLINDER BLOCK

1

6640003

PISTON L - standard

1

6640004

PISTON S - standard

1

6643135

PISTON L - 0,25 mm oversized

1

6643136

PISTON S - 0,25 mm oversized

1

6643133

PISTON L - 0,50 mm oversized

1

6643134

PISTON S - 0,50 mm oversized

2

6640100

PIN

3

6637230

RING, SNAP

4

6643137

RING ASSY piston - per cylinder - standard

4

6640030

RING top ring - standard - per piston

4

6643139

RING ASSY piston - per cylinder - 0,25 mm oversized

4

6643140

RING top ring - 0,25 mm oversized - per piston

4

6643137

RING ASSY piston - per cylinder - 0,50 mm oversized

4

6643138

RING top ring - 0,50 mm oversized - per piston

5

6640098

RING second - standard - per piston

5

6643182

RING second - 0,25. mm oversized - per piston

5

6643175

RING second - 0,50 mm oversized - per piston

6

6640099

RING oil ring - standard - per piston

6

6643183

RING oil ring - 0,25 mm oversized - per piston

6

6643176

RING oil ring - 0,50 mm oversized - per piston

7

6640101

ROD, CONN assembly - connecting

7

6640102

ROD connecting

8

6640103

CAP W/Ref. 7

9

6640104

BUSHING

10

6640105

BOLT

11

6640106

METAL ASY crank pin - standard

11

6640107

METAL standard - per piston

11

6643184

METAL ASY crank pin - 0,25 mm oversized

11

6643185

METAL 0,25 mm oversized - per piston

11

6643177

METAL ASSY crank pin - 0,50 mm oversized

11

6643178

METAL 0,50 mm oversized - per piston

11

6643170

METAL ASY crank pin - 0,75 mm oversized

11

6643171

METAL ASY 0,75 mm oversized - per piston

11

6643168

METAL ASSY crank pin - 1,00 mm oversized

11

METAL ASSY NLA - 1,00 mm oversized - per piston - Was 6643169 - A
