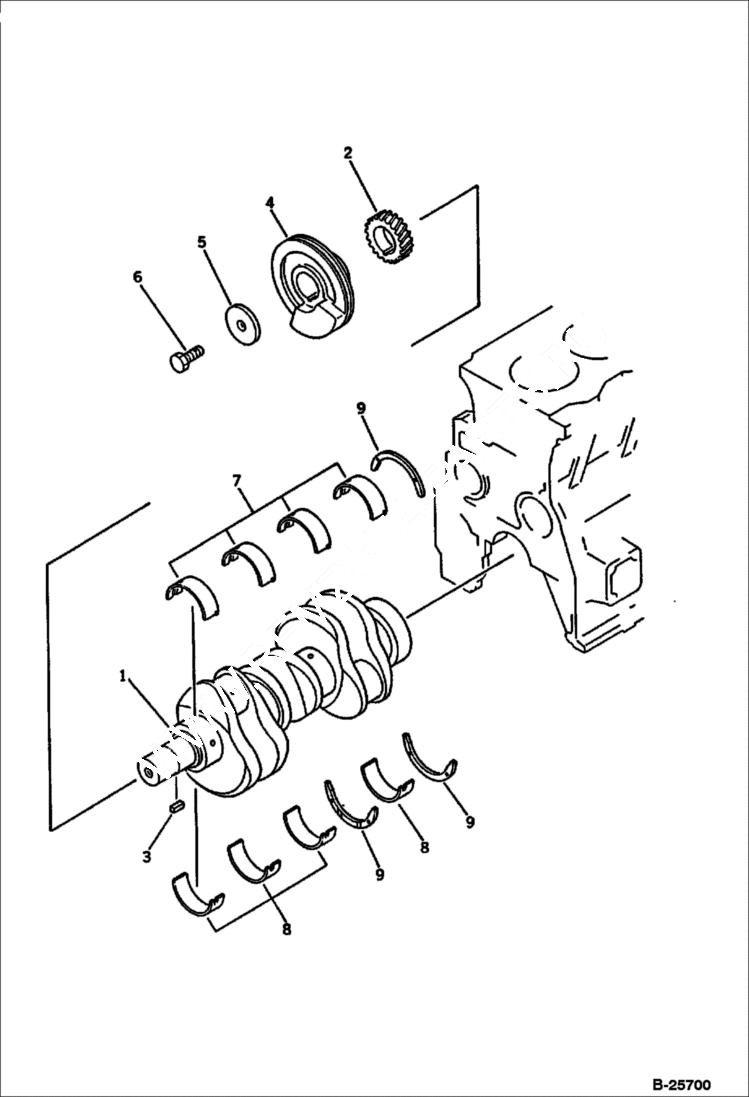

Запчасти Bobcat 116 CRANKSHAFT CYLINDER BLOCK

1

6640000

CRANKSHAFT assembly

1

6640001

CRANKSHAFT

2

6640091

GEAR crankshaft

3

6640191

KEY

4

6640002

PULLEY crank

5

6640093

WASHER

6

6639945

BOLT

7

6640082

METAL ASSY main - standard

7

6640083

METAL upper - standard

7

6643162

METAL ASY main - 0,25 mm undersized

7

6643163

METAL upper - 0,25 mm undersized

7

6643157

METAL ASY main - 0,50 mm undersized

7

6643158

METAL upper - 0,50 mm undersized

7

6643152

METAL ASSY main - 0,75 mm undersized

7

6643153

METAL upper - 0,75 mm undersized

7

6643147

METAL ASSY main - 1,00 mm undersized

7

6643148

METAL upper - 1,00 mm undersized

8

6640084

METAL lower - standard

8

6643164

METAL lower - 0,25 mm undersized

8

6643159

METAL lower - 0,50 mm undersized

8

6643154

METAL lower - 0,75 mm undersized

8

6643149

METAL lower - 1,00 mm undersized

9

6640085

METAL ASY thrust - standard

9

6640086

METAL standard

9

6643165

METAL ASSY thrust - 0,25 mm oversized

9

6643166

METAL 0,25 mm oversized

9

6643160

METAL ASSY thrust - 0,50 mm oversized

9

6643161

METAL 0,50 mm oversized

9

6643155

METAL ASSY thrust - 0,75 mm oversized

9

6643156

METAL 0,75 mm oversized

9

6643150

METAL ASSY thrust - 1,00 mm oversized

9

6643151

METAL 1,00 mm oversized
