BLADE (WIDE SPEC.)

Запчасти Bobcat 116 BLADE (WIDE SPEC.) WORK EQUIPMENT

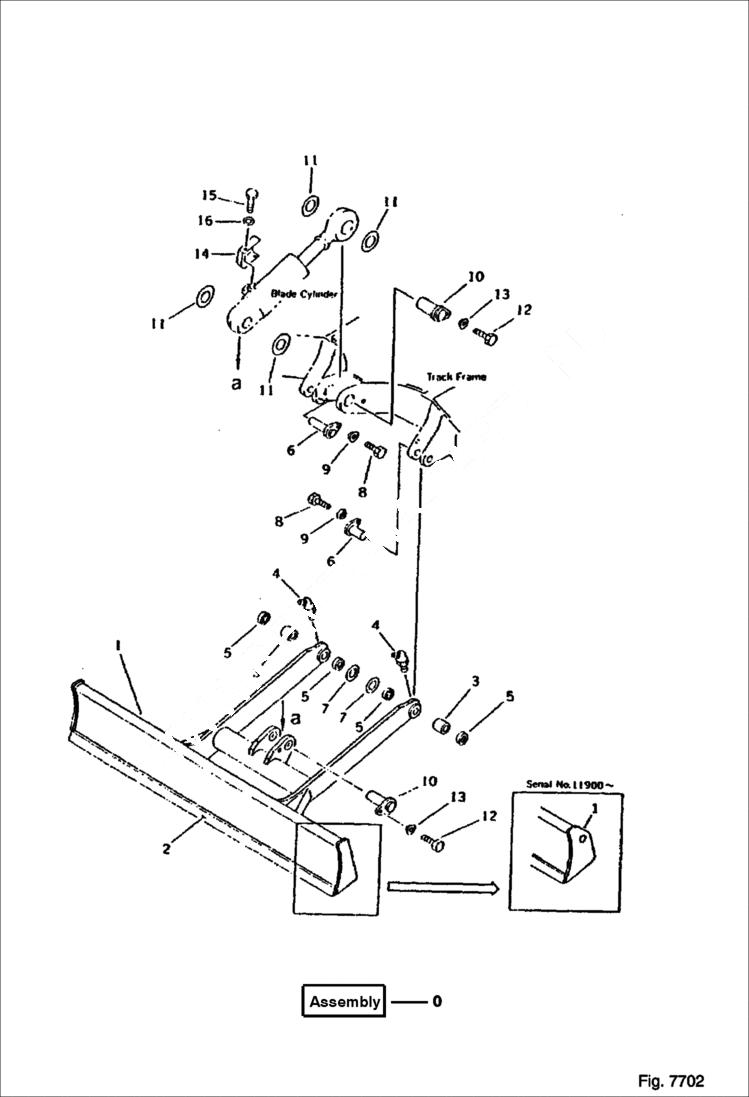

Схема запчастей Bobcat 116 - BLADE (WIDE SPEC.) WORK EQUIPMENT
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

BLADE ASSY, WIDE TYPE Was 20T-71-00141

1

BLADE, WIDE TYPE

2

EDGE welded - Was 20T-71-42120

3

6637526

BUSHING

4

6637431

FITTING

5

6637532

SEAL, DUST

6

6638916

PIN

7

6638598

SPACER 1.0 mm

8

6636979

BOLT

9

6637158

WASHER

10

PIN Was 20T-71-41210

11

6638917

SHIM spacer - 1.0 mm

11

6638918

SHIM spacer - 2.3 mm

12

6636979

BOLT

13

6637158

WASHER
