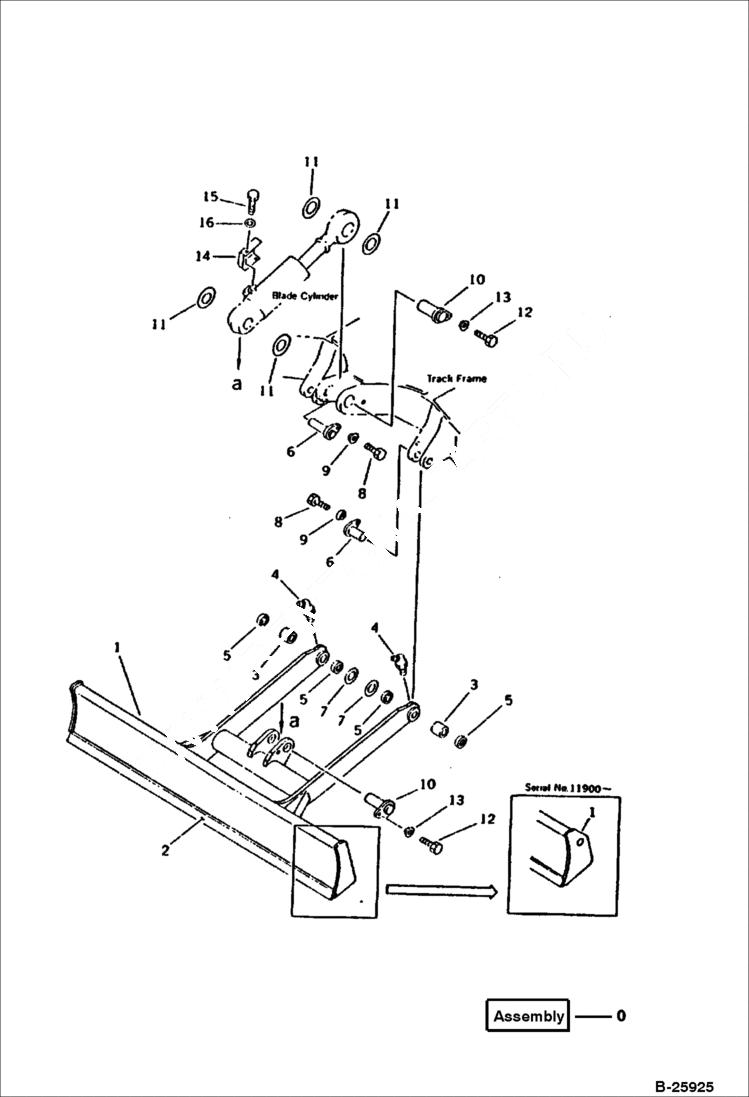

Запчасти Bobcat 116 BLADE WORK EQUIPMENT

0

BLADE ASSY Was 20T-71-00041

1

BLADE

2

EDGE welded - Was 20T-71-41120

3

6637526

BUSHING

4

6637431

FITTING

5

6637532

SEAL, DUST

6

PIN Komatsu S/N 10565 & Abv - Was 20S-71-31221

7

6638598

SPACER 1.0 mm

8

6636979

BOLT

9

SPACER Was 20S-70-31180

10

PIN Was 20T-71-41211

11

6638917

SHIM spacer - 1.0 mm

11

6638918

SHIM spacer - 2.3 mm

12

6636979

BOLT

13

SPACER Was 20S-70-31190

14

COVER Komatsu S/N 11900 & Abv - Was 20T-71-41320

14

COVER Komatsu S/N 10001-11899 - Was 20S-71-31310

15

6636966

BOLT

16

6637157

WASHER
