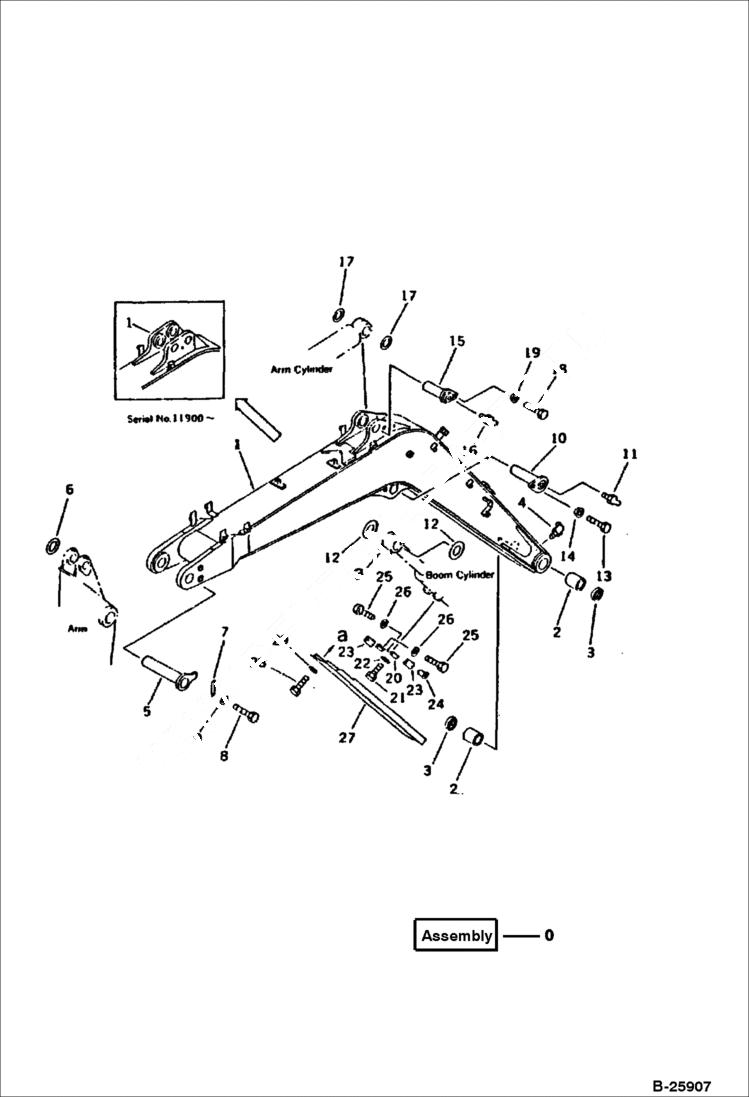

Запчасти Bobcat 116 BOOM (FOR BREAKER AND ATTACHMENT) WORK EQUIPMENT

0

BOOM ASSY Komatsu S/N 11900 & Abv - Was 20T-970-0011

0

BOOM ASSY Komatsu S/N 10001-11899 - Was 20T-970-0010

1

BOOM

2

6664319

BUSHING

3

6637535

SEAL, DUST

4

6637431

FITTING

4

BOOM PIN GROUP Was 20T-70-X1210

5

6664320

PIN

6

6639121

SHIM spacer - 1.0 mm

7

6653551

PLATE

8

6636979

BOLT

9

6637158

WASHER

10

PIN Was 20T-70-41132

11

6637430

FITTING

12

6639121

SHIM spacer - 1.0 mm

13

6636996

BOLT

14

6665525

SPACER

15

6662975

PIN

16

6637430

FITTING

17

6639617

SHIM spacer - 1.0 mm

18

6636996

BOLT

19

6665525

SPACER

20

PLATE Komatsu S/N 11234 & Abv - Was 20U-70-11251

20

PLATE Komatsu S/N 10001-11233 - Was 20U-70-11250

21

6636956

BOLT

22

6637156

WASHER Komatsu S/N 11234 & Abv

23

PAD Komatsu S/N 11234 & Abv - Was 21X-70-11410

23

PAD Komatsu S/N 10001-11233 - Was 20U-70-11261

24

COLLAR Komatsu S/N 11234 & Abv - Was 21X-70-11420

25

6636952

BOLT

26

6637155

WASHER

27

COVER Was 20T-70-41710

28

6636966

BOLT

29

6637157

WASHER
