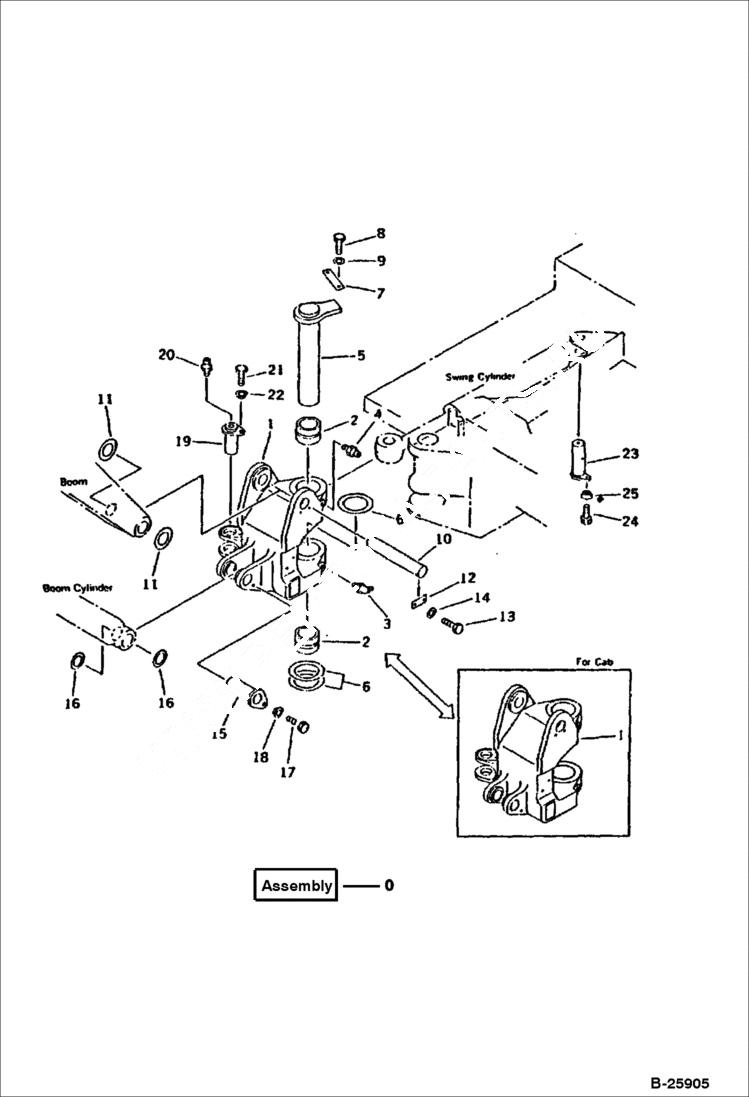

Запчасти Bobcat 116 BOOM SWING BRACKET WORK EQUIPMENT

0

SWING BRACKET ASSY (FOR CANOPY) Komatsu S/N 12141 & Abv - Was 20T-70-00541

0

BRACKET ASSY swing - for canopy - Komatsu S/N 10001-12140 - Was 20T-70-00540

0

SWING BRACKET ASSY (FOR CAB) Komatsu S/N 12141 & Abv - Was 20T-70-00551

0

BRACKET ASSY swing - for cab - Komatsu S/N 10001-12140 - Was 20T-70-00550

1

BRACKET (FOR CANOPY)

1

BRACKET (FOR CAB)

2

6639628

BUSHING

3

6637431

FITTING

4

6637430

FITTING

5

6664317

PIN

6

6638913

SHIM spacer - 0.5 mm

6

6638914

SHIM spacer - 1.0 mm

7

PLATE Was 20S-70-31580

8

6636981

BOLT

9

6637158

WASHER

10

6664318

PIN

11

6639121

SHIM spacer - 1.0 mm

12

6637242

LOCK

13

6636979

BOLT

14

6637158

WASHER

15

6665526

PIN

16

6639121

SHIM spacer - 1.0 mm

17

6636996

BOLT

18

6665525

SPACER

19

PIN Was 20T-70-41180

20

6637430

FITTING

21

6636979

BOLT

22

SPACER Was 20S-70-31180

23

PIN Was 20T-70-41190

24

6636980

BOLT

25

SPACER Was 20S-70-31190
