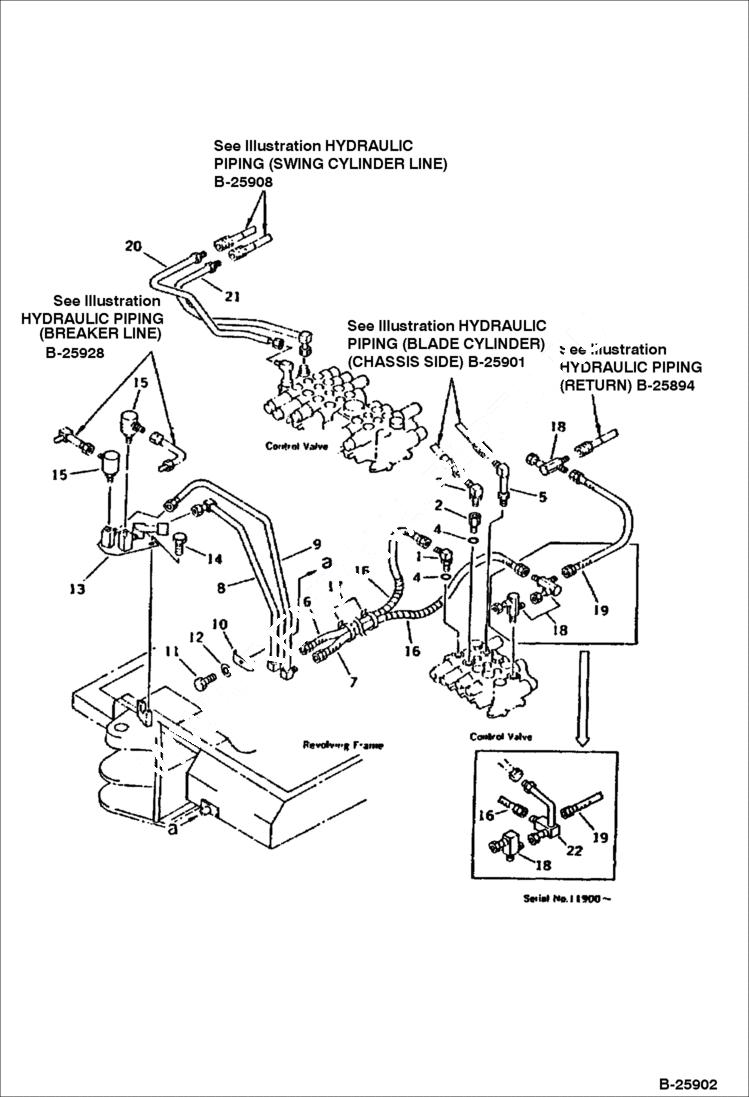

Запчасти Bobcat 116 HYDRAULIC PIPING (BREAKER LINE)(CHASSIS SIDE) WORK EQUIPMENT CONTROL SYSTEM

1

ELBOW Was 205-62-72250

2

UNION Was 20R-62-41610

3

6638580

ELBOW

4

6637415

O-RING

5

6639571

ELBOW

6

HOSE Was 07108-20511

7

HOSE Was 07102-20512

8

TUBE Was 20T-970-4310

9

TUBE Was 20T-970-4320

10

CLAMP Was 20T-62-67720

11

6636967

BOLT

12

6637157

WASHER

13

6645797

BRACKET

14

6636983

BOLT

15

6646772

JOINT

16

6639218

COVER

17

6637685

BAND

18

TUBE Komatsu S/N 11900 & Abv - Was 20T-970-4330

18

TUBE Komatsu S/N 10001-11899 - Was 20T-970-4330

19

HOSE Was 07102-20514

20

TUBE Was 20T-970-4340

21

TUBE Was 20T-970-4350

22

TUBE Komatsu S/N 11900 & Abv - Was 20T-62-66360
