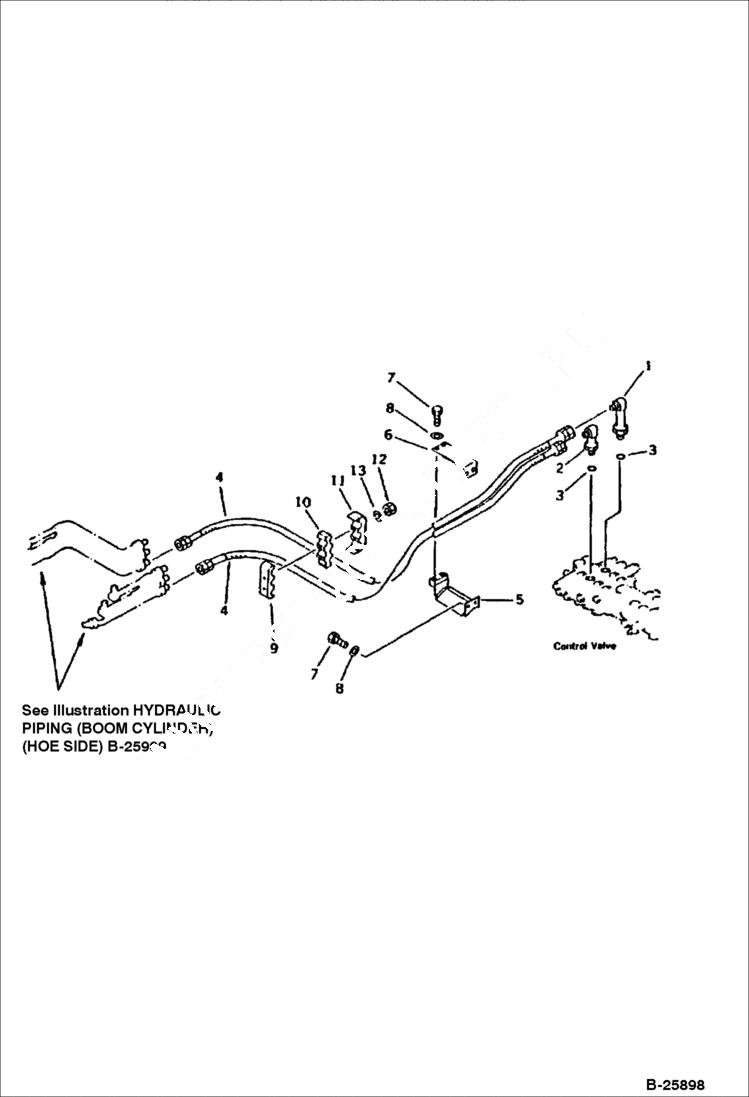

Запчасти Bobcat 116 HYDRAULIC PIPING (BOOM CYLINDER LINE) (CHASSIS SIDE)(FOR I.S.O. PATTERN)(EXCEPT JAPAN) WORK EQUIPMENT CONTROL SYSTEM

1

6639563

ELBOW

2

6639564

ELBOW

3

6637415

O-RING

4

HOSE Komatsu S/N 11574 & Abv - Was 20T-62-67520

4

HOSE Komatsu S/N 10001-11573 - Was 20T-62-61460

5

BRACKET Was 20T-62-61761

6

BRACKET Was 20T-62-61771

7

6636958

BOLT

8

6637156

WASHER

9

RUBBER Komatsu S/N 11574 & Abv - Was 20T-62-67870

9

6639578

RUBBER Komatsu S/N 10001-11573

10

RUBBER Komatsu S/N 11574 & Abv - Was 20T-62-67860

10

6639577

RUBBER Komatsu S/N 10001-11573

11

CLAMP Komatsu S/N 11574 & Abv - Was 20T-62-67880

11

CLAMP Komatsu S/N 10001-11573 - Was 20T-62-67750

12

6637107

NUT

13

6637134

WASHER
