HYDRAULIC PIPING (SWING MOTOR LINE)

Запчасти Bobcat 116 HYDRAULIC PIPING (SWING MOTOR LINE) WORK EQUIPMENT CONTROL SYSTEM

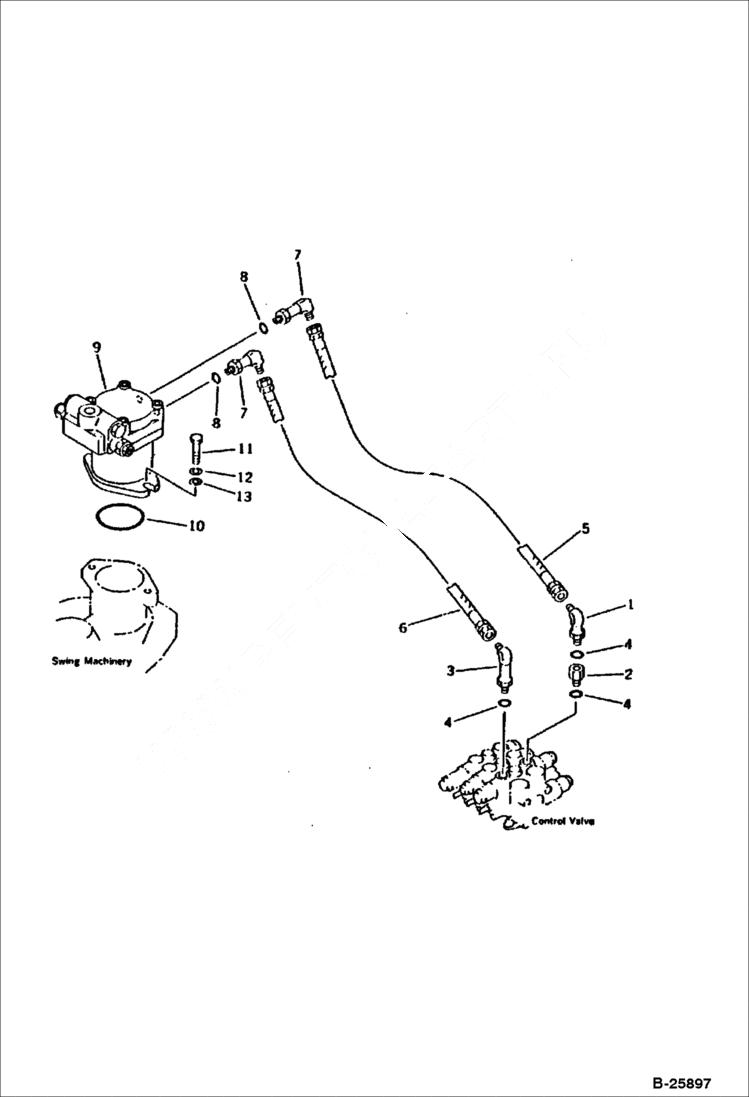

Схема запчастей Bobcat 116 - HYDRAULIC PIPING (SWING MOTOR LINE) WORK EQUIPMENT CONTROL SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6638580

ELBOW

2

UNION Was 20R-62-41610

3

6639571

ELBOW

4

6637415

O-RING

5

HOSE Was 20T-62-66550

6

HOSE Was 20T-62-66560

7

6638577

ELBOW

8

6637417

O-RING

9

6649381

MTR. ASY.

10

6637349

O-RING

11

6636982

BOLT

12

6637136

WASHER

13

6637158

WASHER
