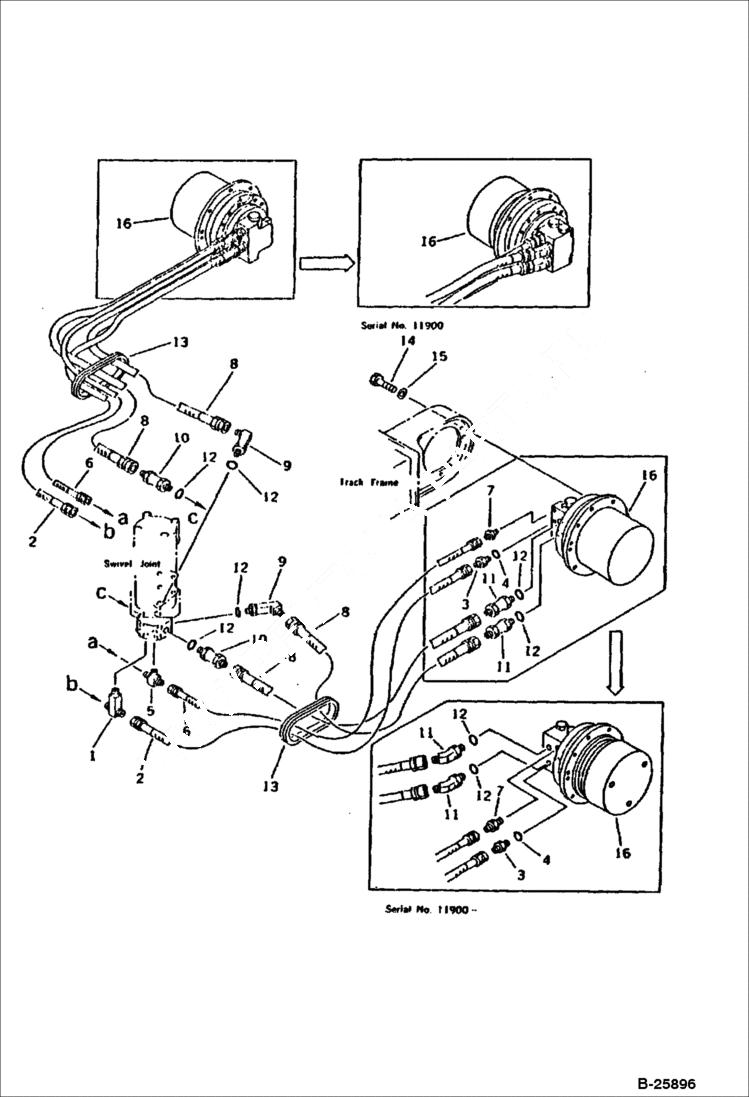

Запчасти Bobcat 116 HYDRAULIC PIPING (TRAVEL MOTOR LINE)(TRACK SIDE) WORK EQUIPMENT CONTROL SYSTEM

1

6665415

LONG TEE

2

HOSE Komatsu S/N 11900 & Abv - Was 07108-20213

2

HOSE Komatsu S/N 10001-11899 - Was 07100-20313

3

6637579

NIPPLE union - Komatsu S/N 11900 & Abv

3

6639397

NIPPLE Komatsu S/N 10001-11899

4

6637414

O-RING

5

6665414

SHORT TEE elbow

6

6637494

HOSE Komatsu S/N 11900 & Abv

6

6637494

HOSE Komatsu S/N 10001-11899

7

6637888

NIPPLE Komatsu S/N 11900 & Abv

7

CONNECTOR Komatsu S/N 10001-11899 - Was 07238-00210

8

HOSE Komatsu S/N 11574 & Abv - Was 20T-62-67250

9

6665416

ELBOW

10

6665417

CONNECTOR tube

11

ELBOW Komatsu S/N 11900 & Abv - Was 20S-62-32180

11

NIPPLE Komatsu S/N 11574 - 11899 - Was 20T-62-67270

11

6658643

NIPPLE Komatsu S/N 10001-11573

12

6637417

O-RING

13

GROMMET Was 20T-62-67140

14

6636981

BOLT Komatsu S/N 11900 & Abv

14

6636980

BOLT Komatsu S/N 10001-11899

15

6637136

WASHER

16

TRAVEL MOTOR ASSY See Illustration TRAVEL MOTOR (1/3)/ B25886 Komatsu S/N 11900 & Abv - Was 20T-60-43100

16

6652049

MOTOR ASY See Illustration TRAVEL MOTOR (1/2)/ B25884 Komatsu S/N 10001-11899
