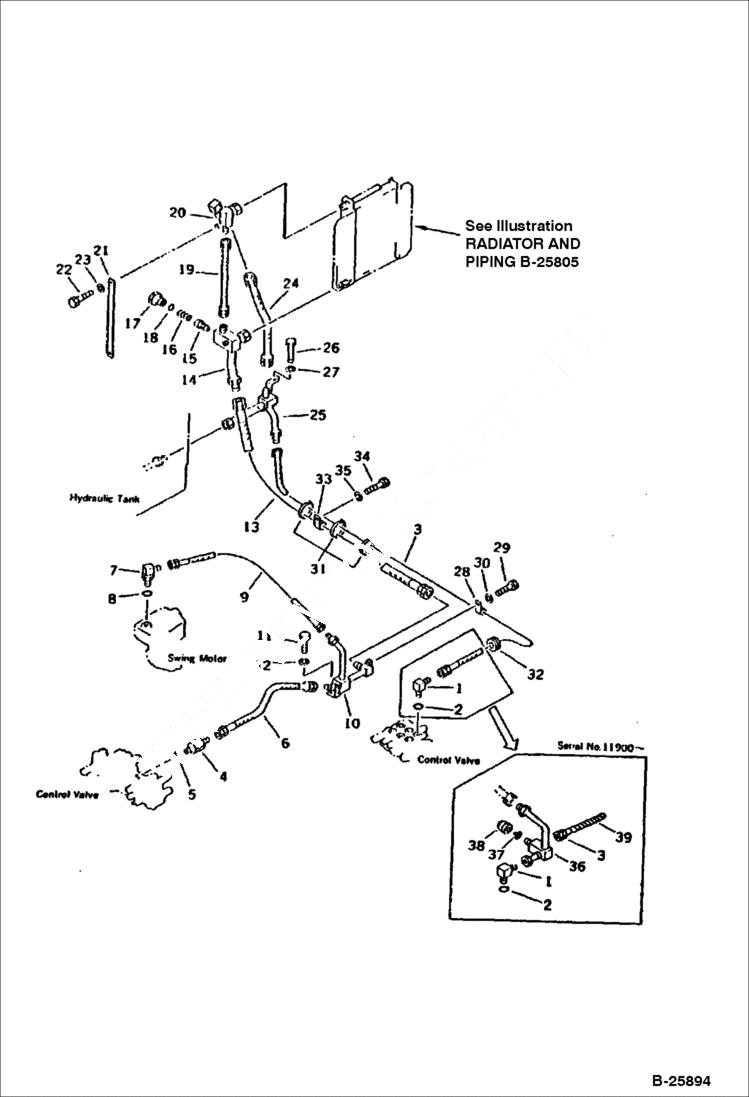

Запчасти Bobcat 116 HYDRAULIC PIPING (RETURN) WORK EQUIPMENT CONTROL SYSTEM

1

6639895

ELBOW

2

6637410

O-RING

3

HOSE Komatsu S/N 11900 & Abv - Was 07102-20514

3

6654109

HOSE Komatsu S/N 10001-11899

4

UNION Was 20T-62-66110

5

6637411

O-RING

6

6637501

HOSE

7

ELBOW Was 20T-62-66150

8

6637410

O-RING

9

6637497

HOSE

10

TUBE Was 20T-62-66241

11

6636967

BOLT

12

6637135

WASHER

13

6654110

HOSE

14

TUBE Was 20T-62-66330

15

6639393

POPPET

16

6637876

SPRING

17

6639820

PLUG

18

6637413

O-RING

19

6637496

HOSE

20

TUBE Was 20T-62-66320

21

PLATE Was 20T-62-66350

22

6636966

BOLT

23

6637157

WASHER

24

6637501

HOSE

25

TUBE Komatsu S/N 11900 & Abv - Was 20T-62-66341

25

TUBE Komatsu S/N 10001-11899 - Was 20T-62-66340

26

6636967

BOLT

27

6637157

WASHER

28

6637690

CLIP

29

6636966

BOLT

30

6637157

WASHER

31

6637685

BAND

32

6637703

GROMMET

33

6639903

CLIP

34

6636966

BOLT

35

6637135

WASHER

36

TUBE Komatsu S/N 11900 & Abv - Was 20T-62-66360

37

PLUG Komatsu S/N 11900 & Abv - Was 07222-00515

38

NUT Komatsu S/N 11900 & Abv - Was 07221-20522

39

6639218

COVER Komatsu S/N 11900 & Abv
