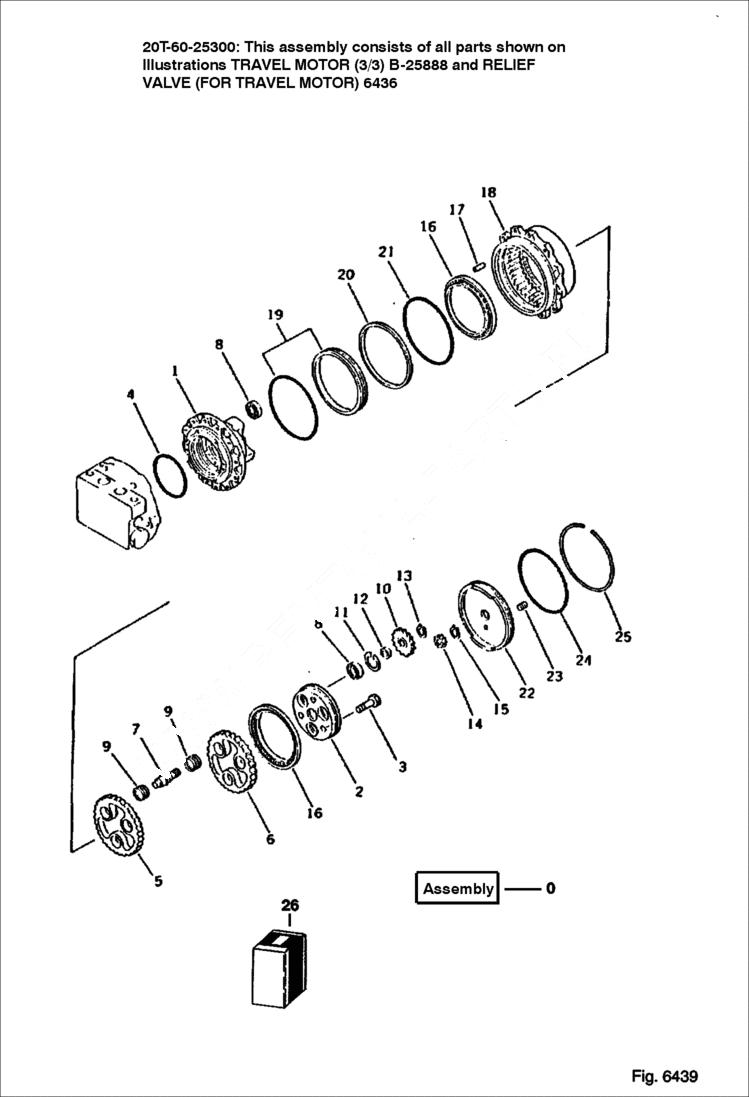

Запчасти Bobcat 116 TRAVEL MOTOR (2/2)(REINFORCED TYPE) WORK EQUIPMENT CONTROL SYSTEM

0

TRAVEL MOTOR ASSY Was 20T-60-25300

0

FINAL DRIVE ASSY Was TZ840A1000-01

0

SPINDLE ASSY Was TZ840A1102-00

0

SPINDLE ASSY Was TZ840A1132-00

1

SPINDLE

2

FLANGE, HOLD

3

6668695

BOLT

4

O-RING (KIT) Was TZJW1516-G26-9

4

6641736

GEAR ASSY

5

6669511

GEAR KIT

5

GEAR

6

GEAR

7

SHAFT, CRANK Was TZ860A1009-00

8

6669510

ROLN BEAR

9

6669506

BEARING

10

6669507

SPRGRASSB

11

6641733

SNAP RING

12

6641734

PIECE

13

6637221

RING, SNAP

14

6669504

INPT GEAR

15

RING, SNAP Was TZJB2804-S14

16

6641727

BEARING

17

6641722

PIN

18

HUB Was TZ840A1001-00

19

SEAL, (KIT) Was TZES100-192-A

19

FLOATING

20

PIECE, DISTANCE Was TZ860A1010-01

21

6642088

O-RING KT

22

6641731

COVER

23

PLUG Was TZGM3-8

24

O-RING (KIT) Was TZJW1516-G49-9

25

6641735

RING

26

SEAL, (KIT) Was TZ840A9000-00

26

6669517

ORING

26

6637370

O-RING

26

6669492

OIL SEAL

26

O-RING, FLOATING Was TZJW1516-G26-9

26

SEAL Was TZES100-192-A

26

6642088

O-RING KT

26

O-RING Was TZJW1516-G49-9
