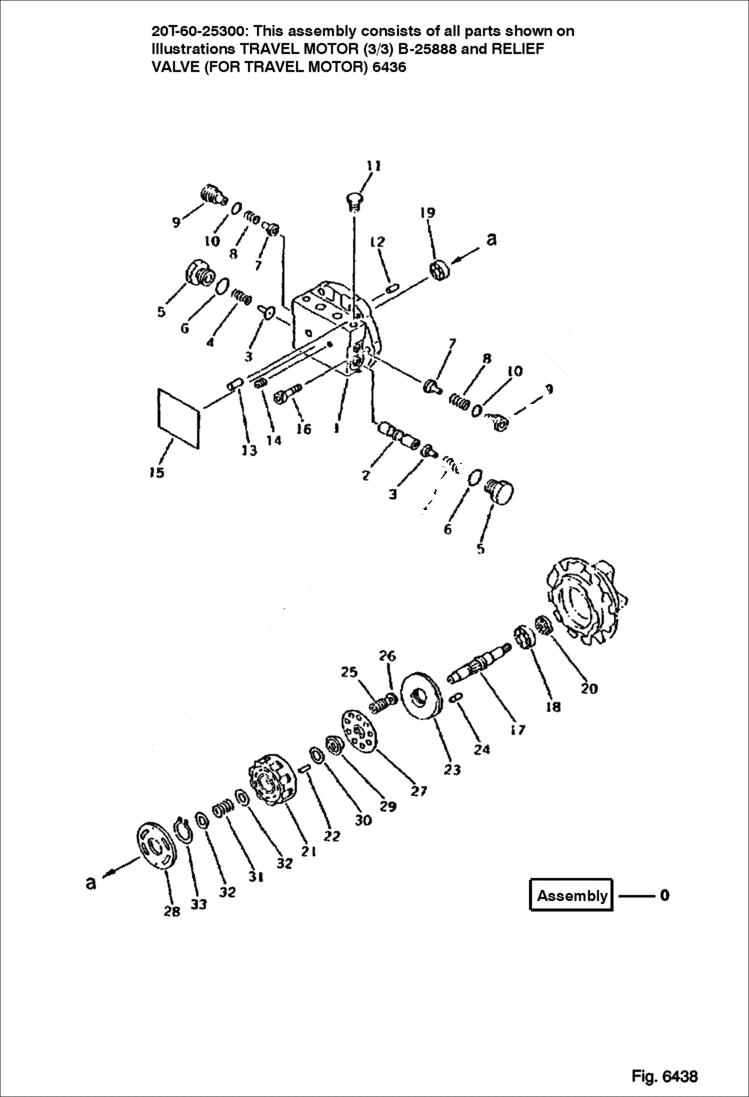

Запчасти Bobcat 116 TRAVEL MOTOR (1/2)(REINFORCED TYPE) WORK EQUIPMENT CONTROL SYSTEM

0

TRAVEL MOTOR ASSY Was 20T-60-25300

0

MOTOR ASSY (PISTON) Was TZ840A200000AC

0

FLANGE ASSY, REAR Was TZ314A210100-C

1

FLANGE, REAR

2

SPOOL

3

6641681

STOPPER

4

SPRING Was TZ300A-2056-00

5

6641680

PLUG

6

6669517

ORING

7

VALVE Was TZ300A2054-00

8

6641683

SPRING

9

PLUG Was TZ300A2053-00

10

6637370

O-RING

11

PLUG Was TZGM1-4

12

PIN, DOWEL Was TZJB1354-4-10

13

PIN, DOWEL Was TZJB1354-8-20

14

PLUG Was TZGM1-8

15

PLATE, NAME Was TZ850A0006-00

16

6637052

BOLT

17

SHAFT Was TZ840A2002-00

18

6642074

BEARING

19

6642073

BEARING

20

6669492

OIL SEAL

21

6641716

BLOCK cylinder

22

PIN Was TZJB1354-2-12

23

PLATE, SWASH Was TZ550A200300-A

24

PIN Was TZ300A2017-00

24

6669502

PISTONKIT

24

PISTON

26

SHOE, PISTON

27

6641718

PLATE

28

6669503

TIME PLAT

29

6646160

COLLAR bowl - thrust

30

6641720

WASHER

31

6641721

SPRING

32

6641679

WASHER

33

RING, SNAP Was TZIRTW-32
