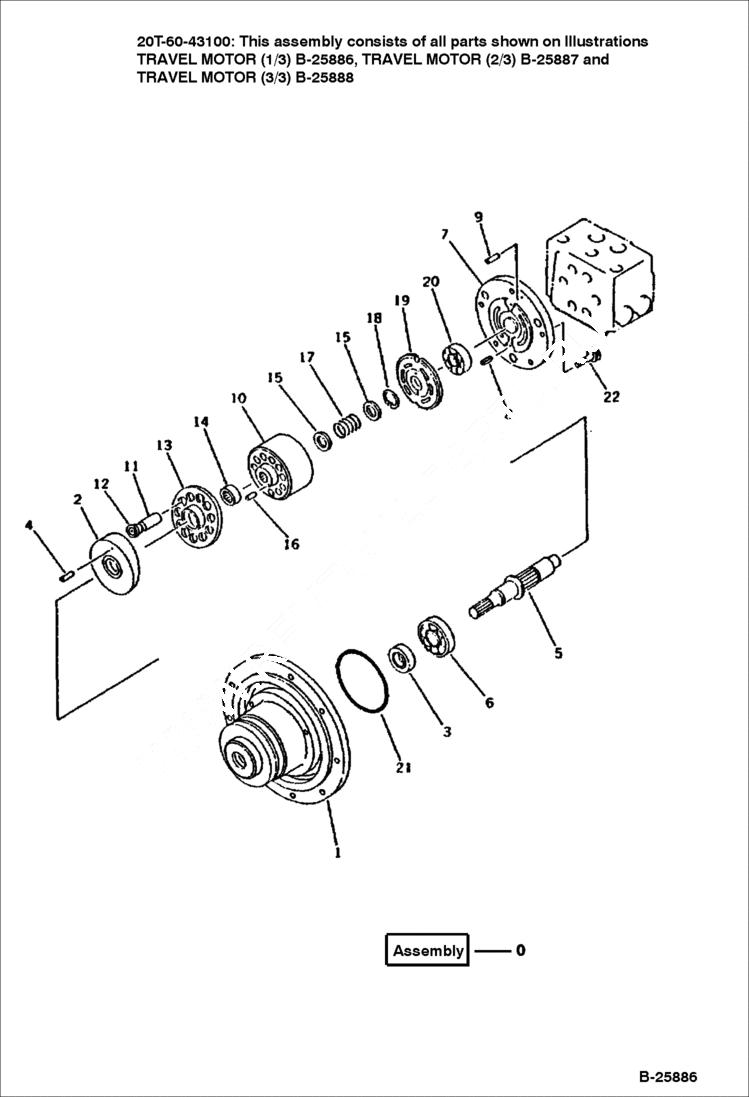

Запчасти Bobcat 116 TRAVEL MOTOR (1/3) Komatsu S/N 11900 & Abv. WORK EQUIPMENT CONTROL SYSTEM

0

TRAVEL MOTOR ASSY See Illustration TRAVEL MOTOR (3/3)/ B25888 See Illustration TRAVEL MOTOR (2/3)/ B25887 Was 20T-60-43100

0

BODY SUB ASSY Was FUMHB-3-2-2096

1

BODY

2

PLATE, SWASH

3

SEAL, OIL

4

PIN

4

SHAFT SUB ASSY Was FUMHSH-3-2197

5

SHAFT

6

BEARING, BALL

6

BODY SUB ASSY Was FUMHB-3-1-2096

7

BODY

8

PIN, SPRING

9

PIN

9

6669486

CYL.SUB.A barrel

10

CYLINDER, BARREL

11

PISTON

12

SHOE

13

HOLDER, SHOE

14

HOLDER, BARREL

15

RETAINER

16

PIN

17

SPRING

18

RING, SNAP

19

VALVE, PLATE Was FUFZS-2096-05

20

6669473

BALL BRG

21

6669483

O-RING

22

SCREW Was FUTH12-10-25
