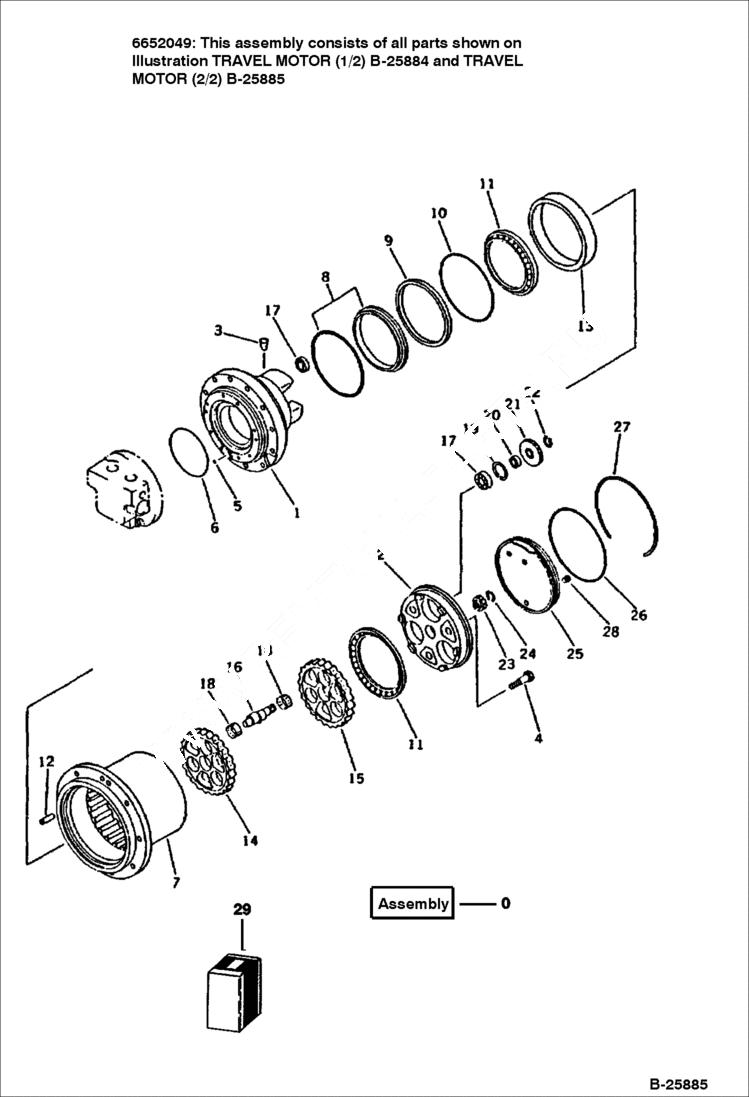

Запчасти Bobcat 116 TRAVEL MOTOR (2/2) Komatsu S/N 10001-11899 WORK EQUIPMENT CONTROL SYSTEM

0

6652049

MOTOR ASY See Illustration TRAVEL MOTOR (1/2)/ B25884

0

FINAL DRIVE ASSY Was TZ314B100-00

1

SPINDLE ASSY Was TZ312B1102-00

1

SPINDLE ASSY Was TZ312B1132-00

1

SPINDLE

2

FLANGE, HOLD

3

EXPANDER Was TZMB700-060

4

BOLT, REAMER Was TZ300A1019-00

5

6642082

O-RING

6

O-RING (KIT) Was TZJW1516-G26-9

7

HUB Was TZ310B1001-01

8

6669514

FLOT SEAL

9

PIECE, DISTANCE Was TZ310B1027-00

10

6658237

RING

11

6658234

BEARING

12

6658644

PIN

13

COLLAR Was TZ310B1020-00

13

6658239

GEAR

13

6658240

GEAR

14

GEAR

15

GEAR

16

6664550

CRANKSHFT

17

6658241

BRG

18

6658242

BRG

19

RING, SNAP Was TZ310B1013-00

20

PIECE, DISTANCE Was TZ550A1014-00

21

6669501

SPR GR AS

22

RING, SNAP Was 04064-02212

23

6664551

INPUTGEAR

24

6637217

SNAP RING

25

COVER Was TZ310B1008-00

26

6658236

O-RING

27

6641674

RING

28

PLUG Was TZGM3-8

29

6669500

SEAL KIT

29

6669517

ORING

29

6637370

O-RING

29

6669492

OIL SEAL

29

6642082

O-RING

29

O-RING Was TZJW1516-G26-9

29

6669514

FLOT SEAL

29

6658237

RING

29

6658236

O-RING
