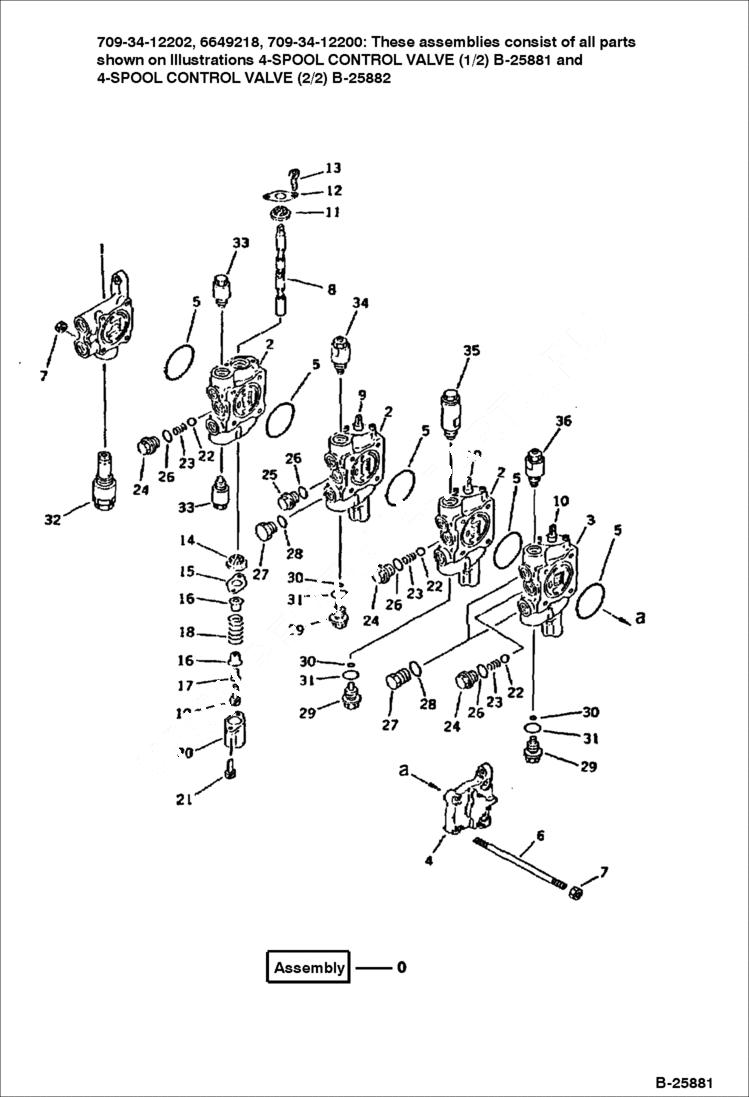

Запчасти Bobcat 116 4-SPOOL CONTROL VALVE (1/2) WORK EQUIPMENT CONTROL SYSTEM

0

VALVE ASSY Komatsu S/N 11696 & Abv. - Was 709-34-12202

0

VALVE ASSY See Illustration 4-SPOOL CONTROL VALVE (2/2)/ B25882 NLA - Komatsu S/N 10609-11695 - Was 6649218

0

VALVE ASSY Komatsu S/N 10001-10608 - Was 709-34-12200

1

BLOCK

2

BLOCK

3

BLOCK

4

COVER

5

6637375

O-RING

6

6643196

STUD

7

6637107

NUT

8

SPOOL, SWING

9

SPOOL, TRAVEL SPEED

10

SPOOL, BLADE ATTACHMENT

11

6640575

SEAL

12

6640576

SHIELD

13

6637049

BOLT

14

6640575

SEAL

15

6640576

SHIELD

16

6640577

RETAINER

17

6640578

COLLAR

18

6640580

SPRING

19

6637051

BOLT

20

6640579

COVER

21

6637050

BOLT

22

6637318

BALL

23

6640583

SPRING

24

6640582

PLUG

25

PLUG Was 709-32-11930

26

6637415

O-RING

27

6637436

PLUG

28

6637415

O-RING

29

6640584

PLUG

30

6640585

O-RING

31

6637410

O-RING

32

6643198

VALVE, RE relief

33

6640551

VALVE ASY suction

34

VALVE ASSY safety - Komatsu S/N 10609 & Abv - Was 709-30-66400

34

VALVE ASSY safety - Komatsu S/N 10001-10608 - Was709-30-66300

35

VALVE ASSY suction & safety - Komatsu S/N 11696 & Abv - Was 709-30-64101

35

VALVE ASSY suction & safety- Komatsu S/N 10001-11695 - Was 709-30-63800

36

6640567

VALVE ASSY safety
