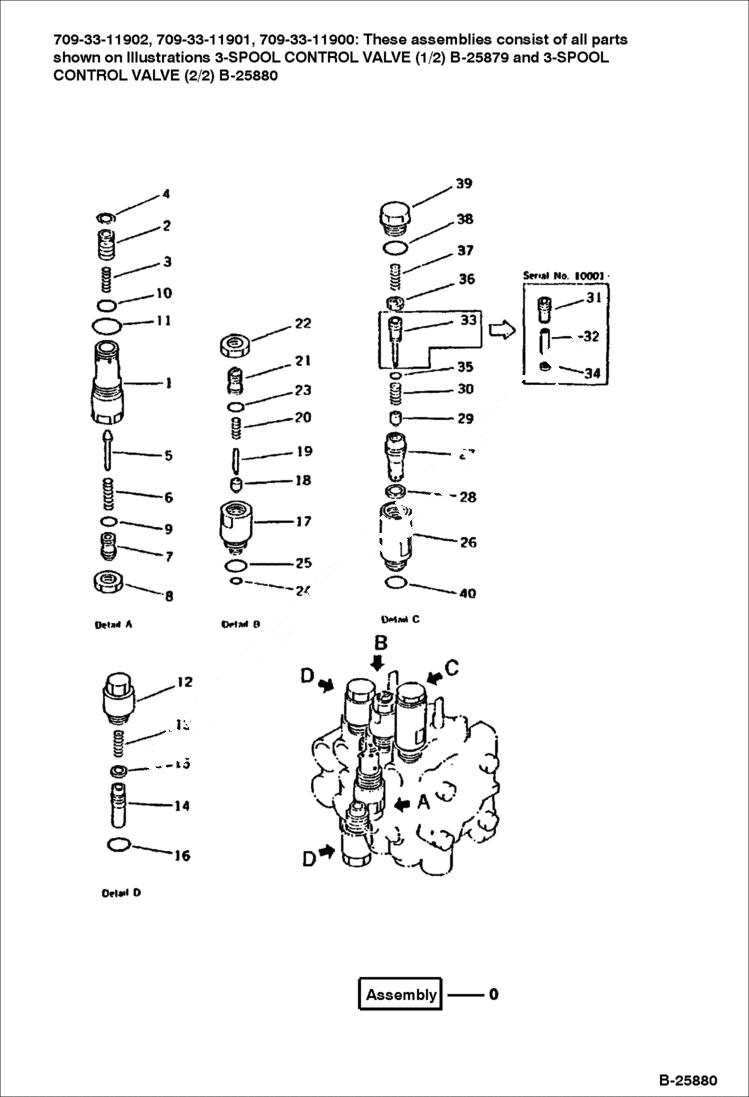

Запчасти Bobcat 116 3-SPOOL CONTROL VALVE (2/2) WORK EQUIPMENT CONTROL SYSTEM

0

VALVE ASSY See Illustration 3-SPOOL CONTROL VALVE (1/2)/ B25879 Komatsu S/N 11900 & Abv - Was 709-33-11902

0

VALVE ASSY See Illustration 3-SPOOL CONTROL VALVE (1/2)/ B25879 Komatsu S/N 11696-11899 - Was 709-33-11901

0

6643198

VALVE, RE main relief

1

SLEEVE

2

VALVE

3

6640220

SPRING

4

6640217

RING

5

6640258

POPPET

6

6640219

SPRING

7

6640218

SCREW

8

6637115

NUT

9

6637335

O-RING

10

6640243

O-RING

11

6637411

O-RING

11

6640551

VALVE ASY suction

12

6640552

SLEEVE

13

VALVE

14

6640221

SPRING

15

SEAL

16

6637410

O-RING

16

VALVE ASSY safety - Komatsu S/N 10001-11899 - Was 709-30-66300

17

SLEEVE

18

POPPET

18

POPPET

19

PISTON

20

SPRING

21

SCREW

22

NUT

23

O-RING

24

6640585

O-RING

25

6637410

O-RING

25

VALVE ASSY suction & safety - Was 709-30-64101

26

6640555

SLEEVE

27

VALVE

28

SEAL

29

POPPET

30

SPRING

31

SCREW Komatsu S/N 11696 & Abv

32

PLUG Was 709-32-11930

32

PISTON

33

PISTON Komatsu S/N 10001-11899

34

SEAL

35

O-RING

36

NUT

37

6640221

SPRING

38

6640556

PLUG

39

6637417

O-RING

40

6637410

O-RING
