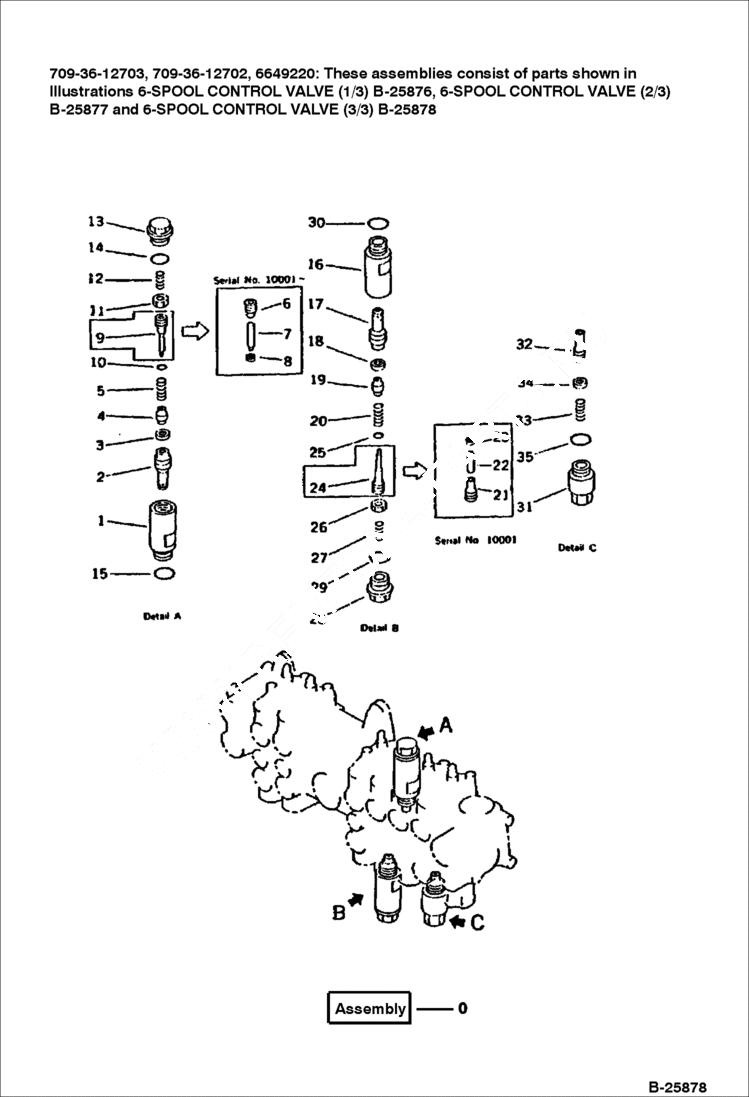

Запчасти Bobcat 116 6-SPOOL CONTROL VALVE (3/3) WORK EQUIPMENT CONTROL SYSTEM

0

VALVE ASY See Illustration 6-SPOOL CONTROL VALVE (2/3)/ B25877 See Illustration 6-SPOOL CONTROL VALVE (1/3)/ B25876 NLA - Was 6649220 - A

0

VALVE ASSY suction & safety - Was 709-30-63702

1

6640555

SLEEVE

2

VALVE

2

VALVE Komatsu S/N 10001-10833

3

SEAL

4

POPPET

4

POPPET Komatsu S/N 10001-10833

5

SPRING

6

SCREW

7

PISTON

8

SEAL

9

PISTON Komatsu S/N 10001-11695

10

O-RING

11

NUT

12

6640221

SPRING

13

6640556

PLUG

14

6637417

O-RING

15

6637410

O-RING

15

6640559

VALVE ASY suction & safety

16

6640555

SLEEVE

17

VALVE

17

VALVE Komatsu S/N 10001-11695

18

SEAL

19

POPPET

19

POPPET Komatsu S/N 10001-11695

20

SPRING

21

SCREW

22

PISTON

23

SEAL

24

PISTON Komatsu S/N 10001-11695

25

O-RING

26

NUT

27

6640221

SPRING

28

6640556

PLUG

29

6637417

O-RING

30

6637410

O-RING

30

6640551

VALVE ASY suction

31

6640552

SLEEVE

32

VALVE

33

6640221

SPRING

34

SEAL

35

6637410

O-RING
