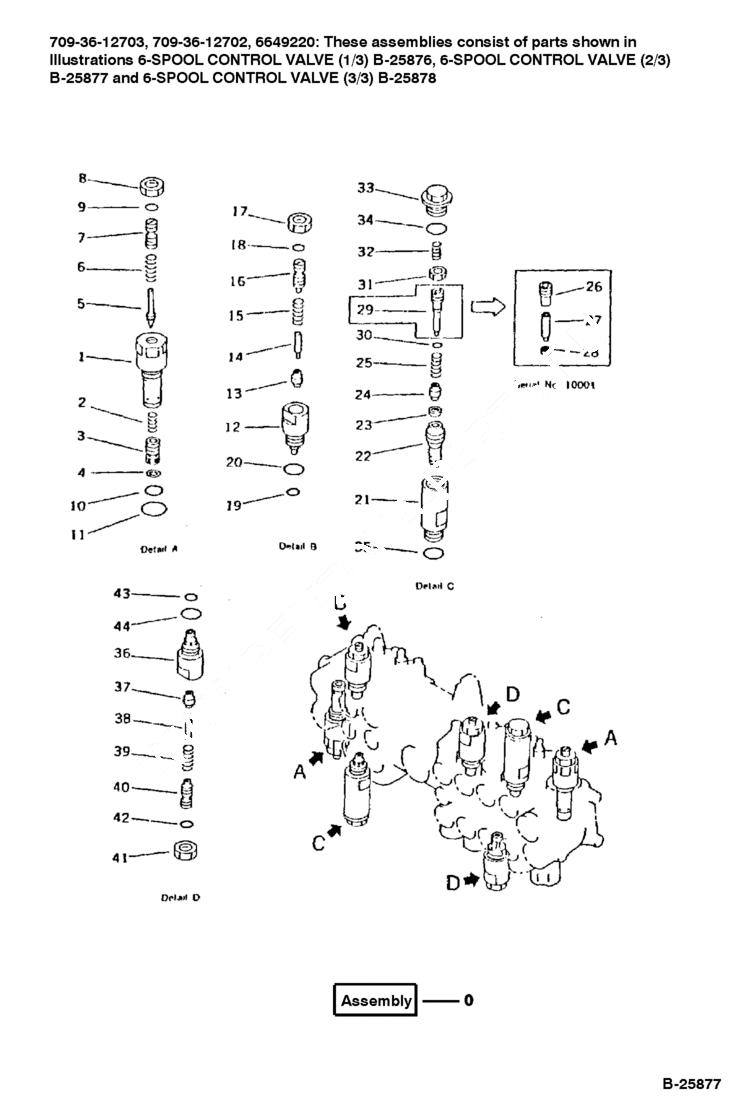

Запчасти Bobcat 116 6-SPOOL CONTROL VALVE (2/3) WORK EQUIPMENT CONTROL SYSTEM

0

6649220

VALVE ASY See Illustration 6-SPOOL CONTROL VALVE (3/3)/ B25878 See Illustration 6-SPOOL CONTROL VALVE (1/3)/ B25876 NLA - Was 709-36-12703 - A

0

6640256

VALVE relief

1

SLEEVE

2

6640220

SPRING

3

VALVE

4

6640217

RING

5

6640258

POPPET

6

6640219

SPRING

7

6640218

SCREW

8

6637115

NUT

9

6637335

O-RING

10

6640243

O-RING

11

6637411

O-RING

11

6640566

VALVE ASSY safety

12

SLEEVE

13

POPPET

13

POPPET

14

PISTON

15

SPRING

16

SCREW

17

NUT

18

O-RING

19

6640585

O-RING

20

6637410

O-RING

20

6654899

VALVE ASY suction & safety

20

6640562

VALVE ASY suction & safety - Komatsu S/N 10001-10833

21

6640555

SLEEVE

22

VALVE

23

SEAL

24

POPPET

25

SPRING

26

SCREW

27

PISTON

28

SEAL

29

PISTON Komatsu S/N 10001-11695

30

O-RING

31

NUT

32

6640221

SPRING

33

6640556

PLUG

34

6637417

O-RING

35

6637410

O-RING

35

6640567

VALVE ASSY safety

36

SLEEVE

37

POPPET

37

POPPET

38

PISTON

39

SPRING

40

SCREW

41

NUT

42

O-RING

43

6640585

O-RING

44

6637410

O-RING
