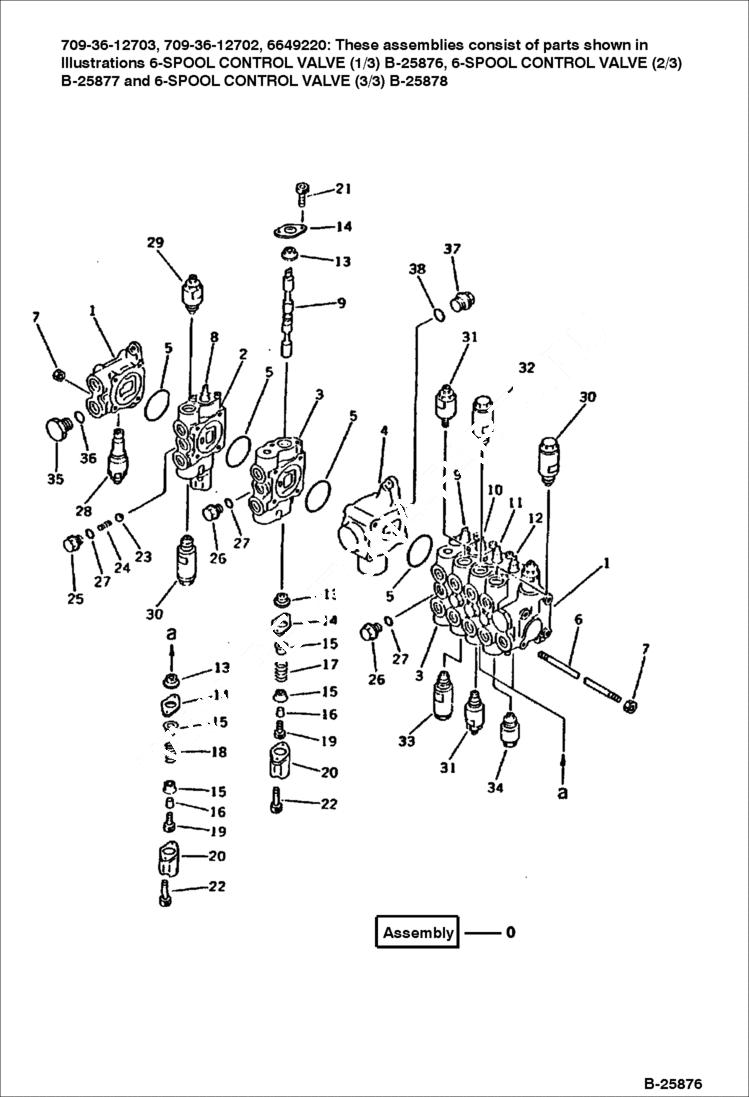

Запчасти Bobcat 116 6-SPOOL CONTROL VALVE (1/3) WORK EQUIPMENT CONTROL SYSTEM

0

6649220

VALVE ASY See Illustration 6-SPOOL CONTROL VALVE (3/3)/ B25878 See Illustration 6-SPOOL CONTROL VALVE (2/3)/ B25877 NLA - Was 709-36-12703 - A

1

BLOCK

2

BLOCK

3

BLOCK

4

BLOCK

5

6637375

O-RING

6

6640595

STUD

7

6637107

NUT

8

SPOOL, ARM

9

SPOOL, TRAVEL

10

SPOOL, BUCKET

11

SPOOL, BOOM

12

SPOOL, BOOM SWING

13

6640575

SEAL

14

6640576

SHIELD

15

6640577

RETAINER

16

6640578

COLLAR

17

6640580

SPRING for travel, arm & bucket

18

6640581

SPRING for boom & boom swing

19

6637051

BOLT

20

6640579

COVER

21

6637049

BOLT

22

6637050

BOLT

23

6637318

BALL

24

6640583

SPRING

25

6640582

PLUG

26

PLUG Was 709-32-11930

27

6637415

O-RING

28

6640256

VALVE relief

29

6640566

VALVE ASSY safety

30

6654899

VALVE ASY suction & safety

30

6640562

VALVE ASY suction & safety - Komatsu S/N 10001-10833

31

6640567

VALVE ASSY safety

32

VALVE ASSY suction & safety - Was 709-30-63702

32

6640563

VALVE ASSEMBLY suction & safety - Komatsu S/N 10001-11695

33

6640559

VALVE ASY suction & safety

34

6640551

VALVE ASY suction

35

6637437

PLUG

36

6637410

O-RING

37

6640240

PLUG

38

6637411

O-RING
