HYDRAULIC PUMP

Запчасти Bobcat 116 HYDRAULIC PUMP WORK EQUIPMENT CONTROL SYSTEM

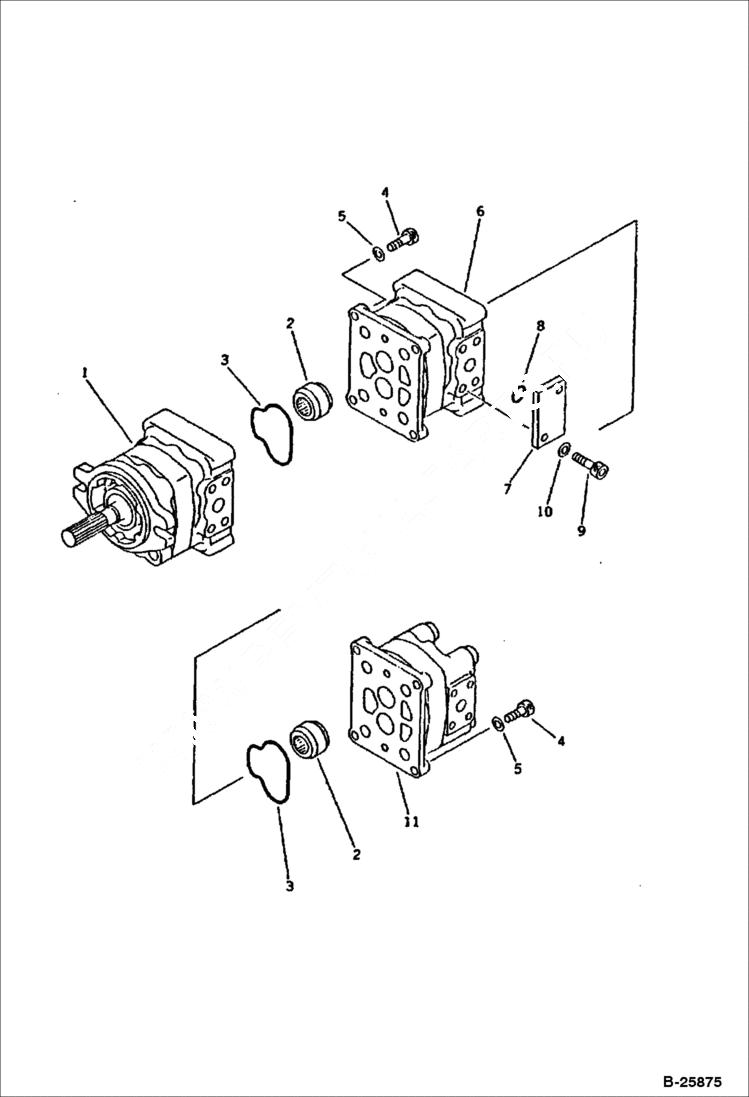

Схема запчастей Bobcat 116 - HYDRAULIC PUMP WORK EQUIPMENT CONTROL SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6649200

PUMP ASY.

1

6655934

PUMP ASSY See Illustration HYDRAULIC PUMP (1/3)/ B25872

2

6640316

COUPLING

3

6649196

SEAL

4

6637052

BOLT

5

WASHER Was 01643-50823

6

6664350

PUMP ASSY See Illustration HYDRAULIC PUMP (2/3)/ B25873

7

PLATE Was 705-40-80941

8

6637342

O-RING

9

6637052

BOLT

10

WASHER Was 01643-50823

11

PUMP ASSY Was 705-41-05030
