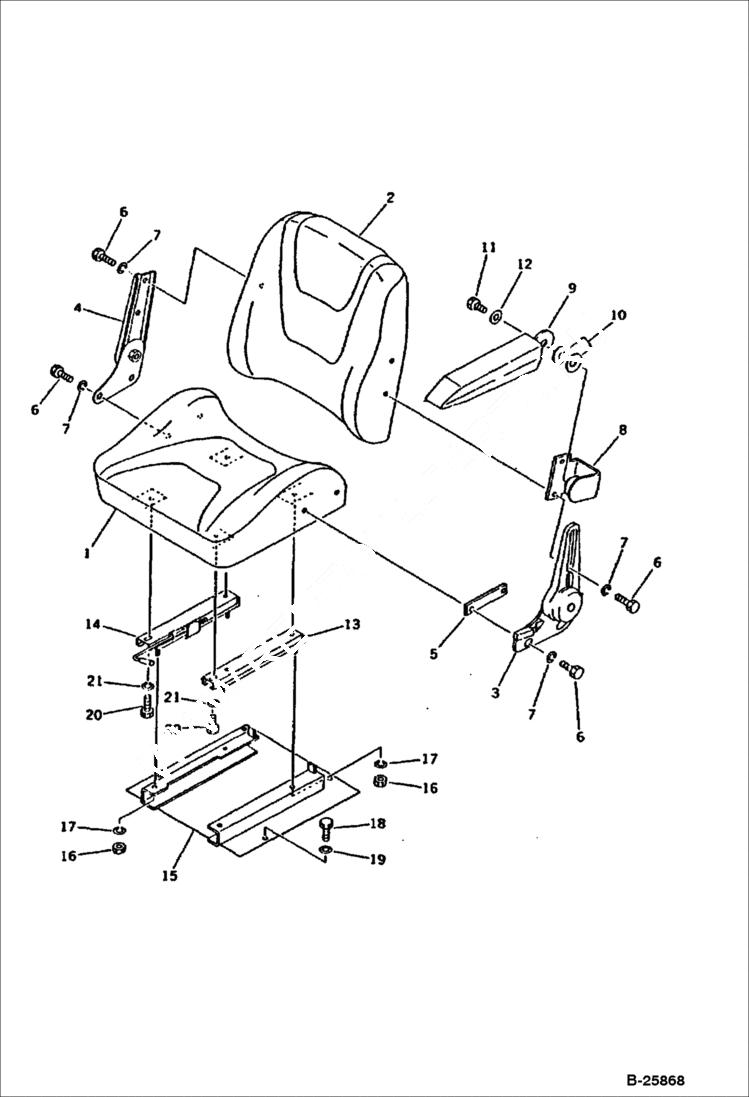

Запчасти Bobcat 116 OPERATORS SEAT (FOR CANOPY) Komatsu S/N 12141 & Abv. GUARD

1

6671066

CUSHION, SEAT Komatsu S/N 12141 & Abv. - Was 363-57-21111

2

6671065

CUSHION, BACK Komatsu S/N 12141 & Abv - Was 363-57-21121

3

LEVER Komatsu S/N 12141 & Abv - 20T-57-41210

4

PLATE Komatsu S/N 12141 & Abv - Was 20T-57-41220

5

6643041

PLATE Komatsu S/N 12141 & Abv

6

6636959

BOLT Komatsu S/N 12141 & Abv

7

6637134

WASHER Komatsu S/N 12141 & Abv

8

BRACKET Komatsu S/N 12141 & Abv - Was 20T-57-41240

9

ARM REST Komatsu S/N 12141 & Abv - Was 20T-57-41230

10

SPRING Was 20T-57-31110

11

6636978

BOLT Komatsu S/N 12141 & Abv

12

6637158

WASHER Komatsu S/N 12141 & Abv

13

ADJUSTER, L.H. Komatsu S/N 12141 & Abv - Was 203-57-51570

14

ADJUSTER, R.H. Komatsu S/N 12141 & Abv - Was 203-57-51562

15

COVER Komatsu S/N 12141 & Abv - Was 20T-57-41260

16

6637107

NUT Komatsu S/N 12141 & Abv

17

6637134

WASHER Komatsu S/N 12141 & Abv

18

6636966

BOLT

19

6637157

WASHER

20

6636958

BOLT Komatsu S/N 12141 & Abv

21

6637134

WASHER Komatsu S/N 12141 & Abv
