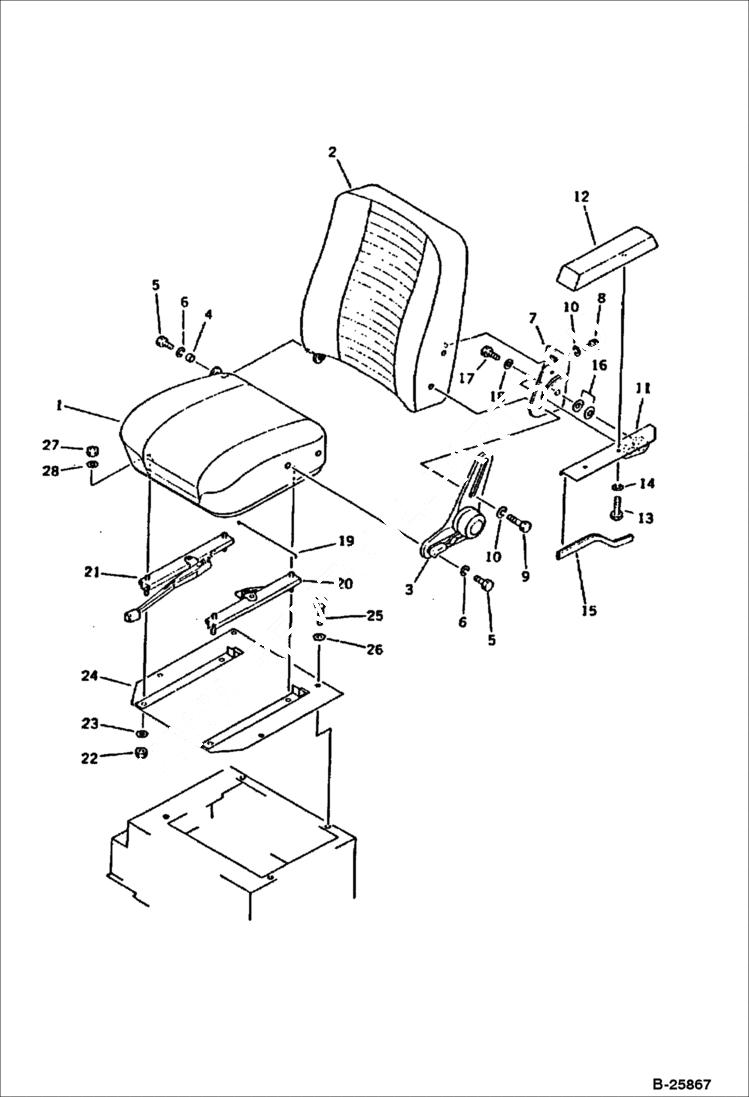

Запчасти Bobcat 116 OPERATORS SEAT (FOR CANOPY) Komatsu S/N 10001-12140 GUARD

1

6639388

CUSHION seat - Komatsu S/N 10001-12140

2

6638802

CUSHION back - Komatsu S/N 10001-12140

3

6639384

LEVER Komatsu S/N 10001-12140

4

6639208

SHIM Komatsu S/N 10001-12140

5

6636966

BOLT Komatsu S/N 10001-12140

6

6637135

WASHER Komatsu S/N 10001-12140

7

6639390

BRACKET Komatsu S/N 10001-12140

8

6636966

BOLT Komatsu S/N 10001-12140

9

6636972

BOLT Komatsu S/N 10001-12140

10

6637135

WASHER Komatsu S/N 10001-12140

11

6639391

BRACE Komatsu S/N 10001-12140

12

6639389

ARM REST Komatsu S/N 10001-12140

13

6636961

BOLT Komatsu S/N 10001-12140

14

6637134

WASHER Komatsu S/N 10001-12140

15

6639392

SEAL Komatsu S/N 10001-12140

16

SPRING Was 20T-57-31110

17

6636978

BOLT Komatsu S/N 10001-12140

18

6637158

WASHER Komatsu S/N 10001-12140

19

6639387

BAR Komatsu S/N 10001-12140

20

6639385

REGULATOR Komatsu S/N 10001-12140

21

6639386

REGULATOR Komatsu S/N 10001-12140

22

6637109

NUT Komatsu S/N 10001-12140

23

6637158

WASHER Komatsu S/N 10001-12140

24

COVER Komatsu S/N 10001-12140 - Was 20T-57-41110

25

6636966

BOLT

26

6637157

WASHER

27

6637109

NUT Komatsu S/N 10001-12140

28

6637158

WASHER Komatsu S/N 10001-12140
