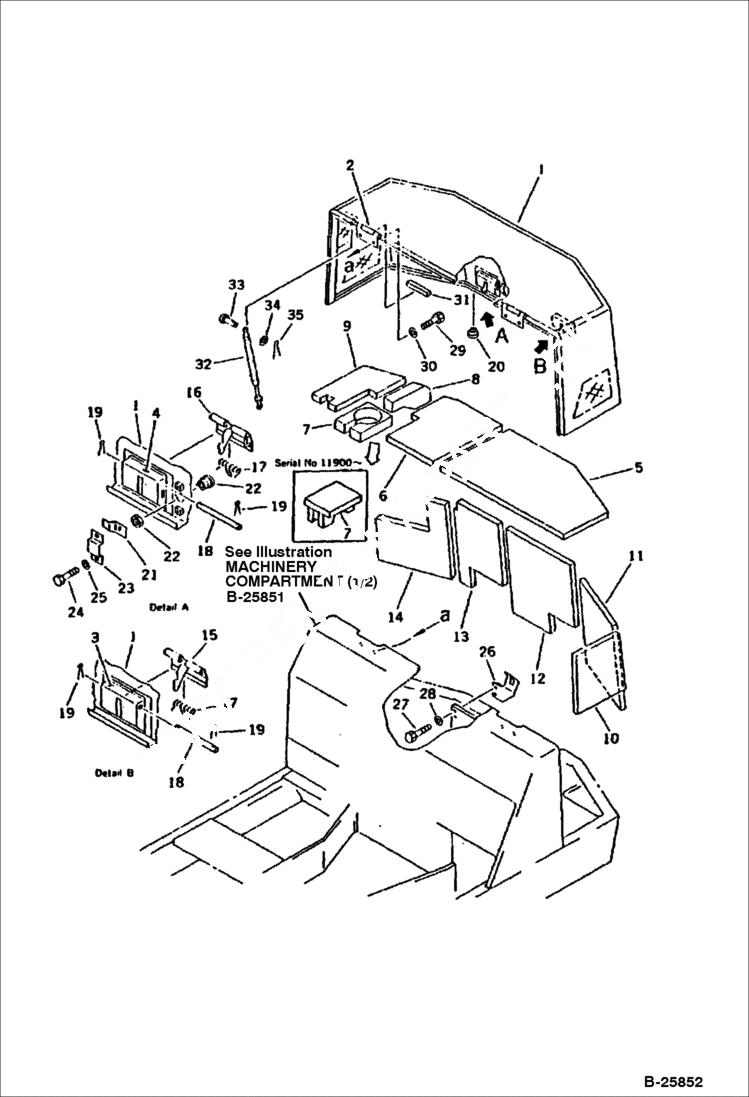

Запчасти Bobcat 116 MACHINERY COMPARTMENT (1/2) (FOR VANDALISM PROTECTION) GUARD

1

HOOD Komatsu S/N 11900 & Abv - Was 20T-54-41440

1

HOOD Komatsu S/N 10001-11899 - Was 20T-54-44110

2

HINGE (WELDED) Was 20S-54-31160

3

COVER (WELDED) Was 20S-54-21440

4

COVER (WELDED) Was 20S-54-25140

5

6654770

SHEET

6

6654771

SHEET

7

SHEET Komatsu S/N 11900 & Abv - Was 20T-54-41220

7

6639477

SHEET Komatsu S/N 10001-11899

8

SHEET Komatsu S/N 11900 & Abv - Was 20T-54-41271

8

6654772

SHEET Komatsu S/N 10001-11899

9

6654773

SHEET

10

SHEET Komatsu S/N 11900 & Abv - Was 20S-54-31232

10

6654774

SHEET Komatsu S/N 10001-11899

11

6654775

SHEET

12

6654776

SHEET

13

6654777

SHEET

14

SHEET Komatsu S/N 11900 & Abv - Was 20S-54-31272

14

6654778

SHEET Komatsu S/N 10001-11899

15

LEVER Was 20S-54-31120

16

LEVER Was 20S-54-34120

17

6639464

SPRING

18

6638780

PIN

19

6637198

PIN, COTTER

20

6639202

STOPPER

21

6642783

PLATE

22

6642599

LOCK ASSY

23

6642926

COVER

24

6636956

BOLT

25

6637156

WASHER

26

LOCK Was 20T-54-41140

27

6636968

BOLT

28

6637157

WASHER

29

6636946

BOLT

30

6637157

WASHER

31

6642928

SEAL

32

SPRING Komatsu S/N 10834 & Abv - Was 20U-54-11631

32

SPRING Komatsu S/N 10001-10833 - Was 20U-54-11630

33

PIN Was 04205-10828

34

6637146

WASHER

35

6637197

PIN, COTTER
