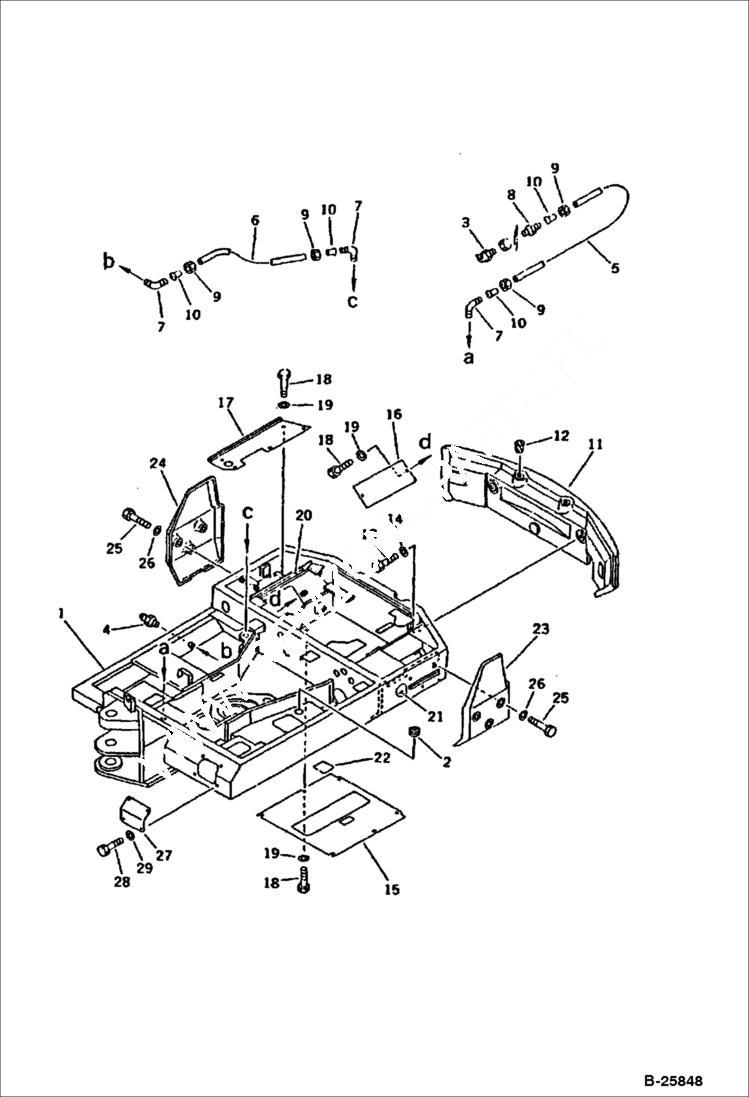

Запчасти Bobcat 116 REVOLVING FRAME (FOR BREAKER AND ATTACHMENT) Komatsu S/N 10001-11899 CONTROL SYSTEM AND REVOLVING FRAME

1

FRAME, REVOLVING Komatsu S/N 10001-11899 - Was 20T-970-4510

2

6637703

GROMMET

3

TUBE Komatsu S/N 10001-11899 - Was 20T-46-41190

4

6637430

FITTING Komatsu S/N 10001-11899

5

6639465

TUBE

6

6646759

TUBE

7

6638567

ELBOW Komatsu S/N 10001-11899

8

6638568

CONNECTOR Komatsu S/N 10001-11899

9

6637664

NUT Komatsu S/N 10001-11899

10

6637661

SLEEVE Komatsu S/N 10001-11899

11

WEIGHT, COUNTER Was 20S-46-31311

12

6637468

PLUG

13

6637001

BOLT

14

6637161

WASHER

15

COVER Komatsu S/N 10001-11899 - Was 20T-46-41141

16

COVER Komatsu S/N 10001-11899 - Was 20T-46-41160

17

COVER Komatsu S/N 10001-11899 - Was 20T-46-41170

18

6636966

BOLT

19

6637157

WASHER

20

6639016

PACKING Komatsu S/N 10001-11899

21

PACKING Was 20T-46-41180

22

SEAT Komatsu S/N 10001-11899 - Was 20T-46-31160

23

WEIGHT, COUNTER, L.H. Komatsu S/N 10001-12140 - Was 20S-46-31321

24

WEIGHT, COUNTER, R.H. Komatsu S/N 10001-12140 - Was 20S-46-31331

25

6636986

BOLT

26

6637158

WASHER

27

COVER Komatsu S/N 10001-11899 - Was 20T-46-41150

28

6636958

BOLT

29

6637156

WASHER
