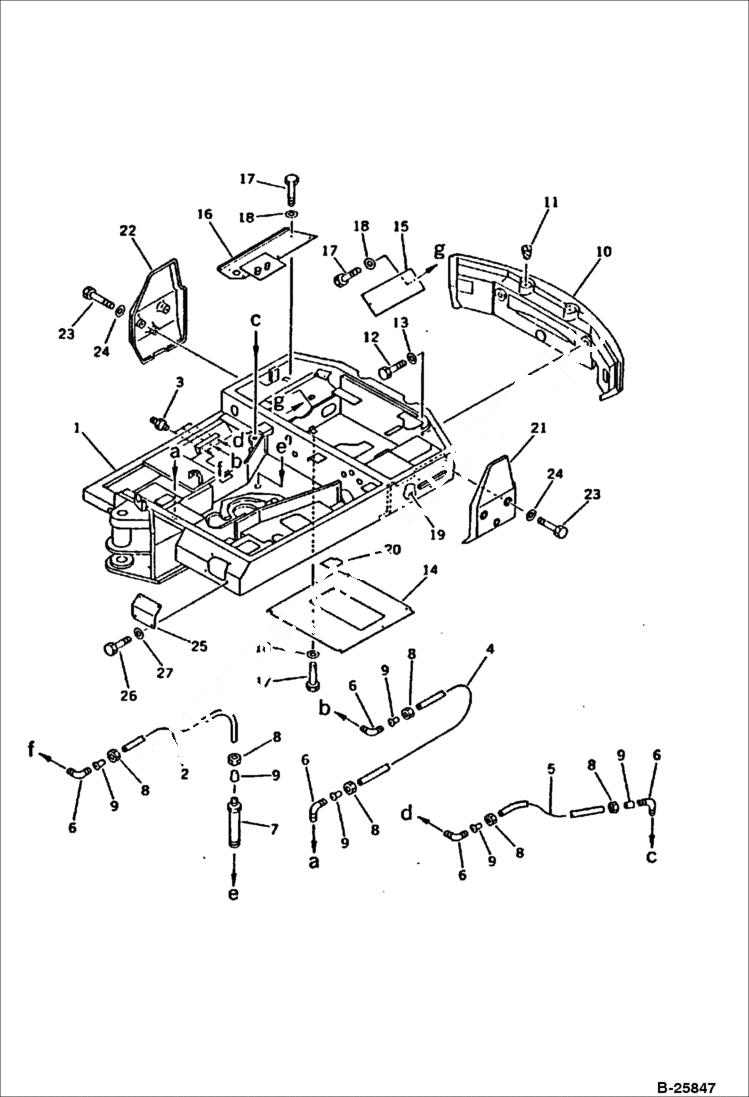

Запчасти Bobcat 116 REVOLVING FRAME Komatsu S/N 11900 & Abv. CONTROL SYSTEM AND REVOLVING FRAME

1

FRAME, REVOLVING Komatsu S/N 11900 & Abv - Was 20T-46-41113

1

FRAME revolving (for moment limit system - W/O cab of except Japan) - Komatsu S/N 11900 & Abv. - Was 20T-46-42112

2

TUBE Komatsu S/N 11900 & Abv - Was 20T-46-41190

3

6637430

FITTING Komatsu S/N 11900 & Abv

4

6639465

TUBE

5

6646759

TUBE

6

6638567

ELBOW Komatsu S/N 11900 & Abv

7

6638296

CONNECTOR Komatsu S/N 11900 & Abv

8

6637664

NUT Komatsu S/N 11900 & Abv

9

6637661

SLEEVE Komatsu S/N 11900 & Abv

10

WEIGHT, COUNTER Was 20S-46-31311

11

6637468

PLUG

12

6637001

BOLT

13

6637161

WASHER

14

COVER Komatsu S/N 11900 & Abv - Was 20T-46-41142

15

COVER Komatsu S/N 11900 & Abv - Was 20T-46-41270

16

COVER Komatsu S/N 11900 & Abv - Was 20T-46-41171

17

6636966

BOLT

18

6637157

WASHER

19

PACKING Was 20T-46-41180

20

SEAT Komatsu S/N 11900 & Abv - Was 20T-46-31161

21

6658645

CTRWGT LH Komatsu S/N 12141 & Abv

22

6657723

CTRWGT RH Komatsu S/N 12141 & Abv

23

6636986

BOLT

24

6637158

WASHER

25

COVER Komatsu S/N 11900 & Abv - Was 20T-46-41250

26

6636958

BOLT

27

6637156

WASHER
