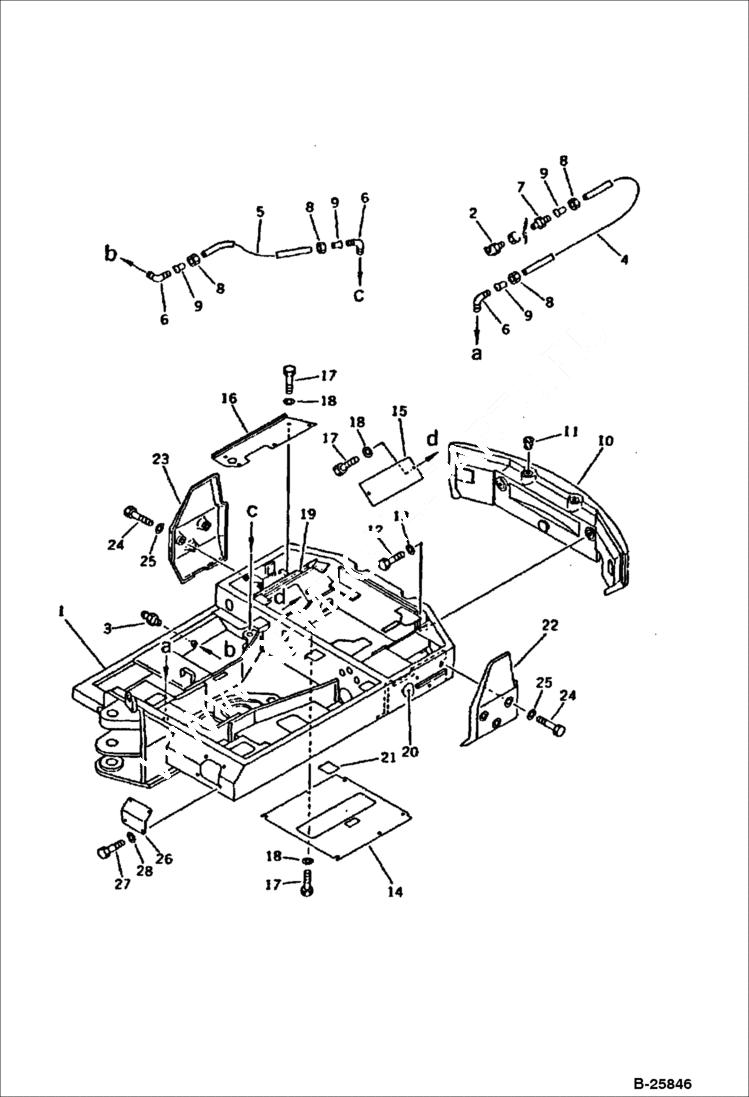

Запчасти Bobcat 116 REVOLVING FRAME Komatsu S/N 10001-11899 CONTROL SYSTEM AND REVOLVING FRAME

1

FRAME, REVOLVING Komatsu S/N 10001-11899 - Was 20T-46-41111

1

FRAME revolving (for moment limit system - W/O cab of execpt Japan) - Komatsu S/N 10001-11899 - Was 20T-46-42210

2

6637431

FITTING Komatsu S/N 10001-11899

3

6637430

FITTING Komatsu S/N 10001-11899

4

6639465

TUBE

5

6646759

TUBE

6

6638567

ELBOW Komatsu S/N 10001-11899

7

6638568

CONNECTOR Komatsu S/N 10001-11899

8

6637664

NUT Komatsu S/N 10001-11899

9

6637661

SLEEVE Komatsu S/N 10001-11899

10

WEIGHT, COUNTER Was 20S-46-31311

11

6637468

PLUG

12

6637001

BOLT

13

6637161

WASHER

14

COVER Komatsu S/N 10001-11899 - Was 20T-46-41141

15

COVER Komatsu S/N 10001-11899 - Was 20T-46-41160

16

COVER Komatsu S/N 10001-11899 - Was 20T-46-41170

17

6636966

BOLT

18

6637157

WASHER

19

6639016

PACKING Komatsu S/N 10001-11899

20

PACKING Was 20T-46-41180

21

SEAT Komatsu S/N 10001-11899 - Was 20T-46-31160

22

WEIGHT, COUNTER, L.H. Komatsu S/N 10001-12140 - Was 20S-46-31321

23

WEIGHT, COUNTER, R.H. Komatsu S/N 10001-12140 - Was 20S-46-31331

24

6636986

BOLT

25

6637158

WASHER

26

COVER Komatsu S/N 10001-11899 - Was 20T-46-41150

27

6636958

BOLT

28

6637156

WASHER
